View:11What Size SEG Lightbox Is Best for an Exhibition Booth?
Choosing the right SEG lightbox size starts with the booth layout—not simply the largest display that fits the available space. The right configuration should support your exhibition design, provide consistent illumination, remain stable during use, and allow efficient transportation and repeated installation.
For exhibition contractors, display distributors, and brand activation companies, modular compatibility and long-term reuse are just as important as the initial dimensions.
This guide explains how to select SEG lightbox sizes for common exhibition layouts, compare frame configurations, and confirm technical specifications before ordering.
Get a SEG Lightbox Size Recommendation
Key Takeaways
Start with the booth layout. A 3×3m inline booth, 3×6m booth, and 6×6m island booth require different backwall arrangements.
Check the actual display dimensions. Lintel's nominal frame dimensions correspond to the overall external frame dimensions. Finished SEG graphic dimensions are specified separately.
Choose the appropriate lighting configuration. Lintel offers 60mm and 80mm single-sided direct-backlit configurations and 85mm and 120mm double-sided edge-lit configurations.
Plan modular expansion. Compatible SEGPRO® modules can be added to extend display width or height, while corner connections require project-specific layout planning.
Consider transportation and repeated installation. Large-format structures, protective packaging, numbered components, and assembly instructions should be reviewed before purchasing.
1. Choose SEG Lightbox Dimensions Based on Booth Layout
The first step is to determine how the lightbox will fit within the exhibition stand. Booth dimensions provide a starting point, but the final configuration also depends on open sides, entrances, furniture, storage requirements, and the permitted construction area.
SEG Lightbox Size Reference by Booth Layout
| Booth Layout | Suggested Starting Configuration | Planning Considerations |
|---|---|---|
| 3×3m Inline Booth | Approximately 2–3m wide backwall | Allow space for booth furniture and access |
| 3×6m Inline Booth | Approximately 3–6m modular backwall | Consider multi-module construction and transport |
| 3×3m Corner Booth | Main backwall with optional side display | Keep the open sides accessible |
| 6×6m Island Booth | Multiple modular lightbox structures | Plan traffic flow, central displays, and viewing directions |
| Small Exhibition Space | Approximately 1–2m standalone display | Prioritize footprint and portability |
These are illustrative planning configurations, not fixed product specifications or universal exhibition standards. Final dimensions should be confirmed against the actual stand plan.
For a 3×3m inline booth, a single backwall may provide sufficient branding space. For a 3×6m booth, a longer modular illuminated wall can create a more continuous visual presentation.
Larger island booths often benefit from multiple display structures rather than one oversized backwall. These may include freestanding lightboxes, counters, illuminated towers, or other compatible modular elements.
Procurement Tip: Share the booth floor plan, required display dimensions, and intended configuration with your supplier before confirming the order.
Explore SEGPRO® Modular Light Box Systems
2. Confirm Frame Dimensions and SEG Graphic Sizes
One common specification question is whether the advertised lightbox size matches its actual external dimensions.
For Lintel Display lightboxes, the nominal frame size corresponds to the overall external frame dimensions. The finished SEG fabric graphic dimensions are different because the fabric and silicone edge must fit the frame's graphic channel.
For example, when ordering a lightbox with a specified external width and height, the corresponding graphic production dimensions should be confirmed using the template for that particular frame.
Before placing an order, confirm:
Overall external frame width and height
Profile depth and lighting configuration
Finished SEG graphic dimensions
Silicone edge specifications
Available standard modules and custom-size requirements
The exact graphic template and any project-specific dimensional requirements can be confirmed with your Lintel sales manager.
This is especially important for distributors and printing companies that produce replacement graphics independently.
3. Plan Modular SEG Lightbox Configurations for Different Booth Sizes
A modular SEG lightbox system offers greater flexibility when the same display inventory is used across exhibitions with different floor plans.
The SEGPRO® Modular Light Box System supports compatible module combinations, allowing users to extend illuminated structures according to their exhibition requirements.
How Is the Overall Size Calculated When Adding Modules?
For a straight modular lightbox wall, extending the width or height generally involves adding the corresponding module dimensions.
For example, if an existing configuration is extended with another compatible module, the new overall dimension is determined by the additional module size within the system's specified connection arrangement.
Corner configurations require additional consideration. The final layout depends on the available booth space, the intended corner design, and the compatible connection components.
| Configuration | Application | What to Confirm |
|---|---|---|
| Single Lightbox | Small booth backwall or standalone display | External dimensions and base arrangement |
| Extended Straight Wall | Medium or large exhibition backwall | Additional module dimensions and connections |
| L-Shaped Configuration | Corner booth or divided display space | Corner design and compatible connectors |
| Multi-Structure Booth | Larger inline or island booths | Overall layout, stability, and accessory compatibility |
| Expanded Height | Taller exhibition display | Structural reinforcement and permitted build height |
A modular system also helps exhibition contractors maintain reusable frame inventory rather than purchasing a completely new structure for every project.
For repeat orders: Purchase compatible modules from the same manufacturer's corresponding system. Lintel's modular lightbox modules are supplied with pre-installed LED strips, simplifying assembly and helping maintain consistency across repeat configurations. The required electrical specifications and lighting appearance should still be matched to the existing installation.
4. Choose the Right Profile Depth and Lighting Configuration
SEG lightbox lighting should be selected according to the actual frame system and intended application—not simply by dividing products into small and large lightboxes.
Lintel offers different profile configurations for different display requirements.

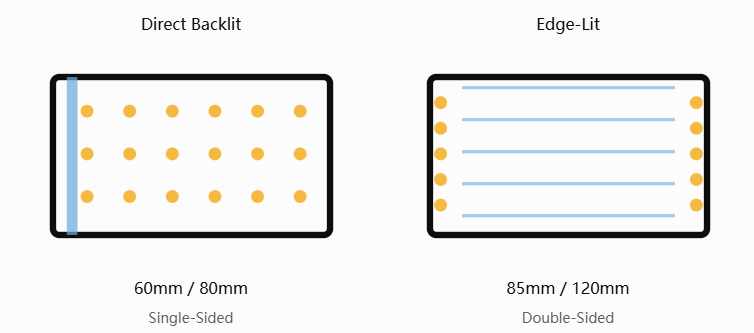

Lintel SEG Lightbox Profile & Lighting Options
| Frame Profile | Lighting Configuration | Display Type |
|---|---|---|
| 60mm | Direct Backlit | Single-Sided |
| 80mm | Direct Backlit | Single-Sided |
| 85mm | Edge-Lit | Double-Sided |
| 120mm | Edge-Lit | Double-Sided |
The appropriate choice depends on whether the display needs one or two illuminated faces, its structural arrangement, and the required installation configuration.
Direct Backlit: LEDs illuminate the graphic from behind. Lintel's 60mm and 80mm configurations are designed for single-sided illuminated displays.
Edge-Lit: LEDs illuminate through the frame's optical arrangement. Lintel's 85mm and 120mm configurations support double-sided illuminated displays.
Lighting uniformity also depends on the complete system, including the LED arrangement, profile construction, optical design, and SEG fabric.
For larger projects, request confirmation of the lighting configuration and evaluate an illuminated sample where appropriate.
5. Check Stability, Transport Packaging, and Installation
Larger SEG lightboxes require more than simply increasing the dimensions of a smaller frame.
The structure must remain stable during exhibition use while still allowing practical transportation and assembly.
Structural Stability
Lintel uses different structural arrangements according to lightbox dimensions and project requirements.
For larger configurations, reinforcement solutions can include:
Double-layer lightbox structures for additional support
More robust aluminum profiles where greater structural strength is required
Project-specific structural arrangements based on the booth layout
The suitable construction should be confirmed according to the finished size, intended use, and installation conditions.
Protective Transportation Packaging
Lintel's applicable portable lightbox configurations use Oxford-fabric wheeled transport bags with EPE protective inserts.
The packaging helps protect frame components during handling and transportation, while the wheeled design supports repeated exhibition use.
For large or customized projects, confirm the packing method, packed dimensions, weight, and number of packages before arranging freight.
On-Site Assembly
Lintel's modular lightbox components use numbered labels to guide the assembly sequence.
Installers can follow the corresponding numbers to connect the components in order or refer to the product installation video.
This simplifies the setup process for exhibition contractors working with repeatable modular configurations.
Project Tip: For large exhibition programs, request the assembly video, packing list, and module configuration drawing before shipment so installation teams can prepare in advance.
6. Confirm Exhibition Venue and Installation Requirements
Lightbox dimensions must be compatible with the exhibition organizer's construction rules.
Before approving the final design, check:
Maximum permitted stand construction height
Booth boundaries and any applicable setback restrictions
Freestanding structure and stability requirements
Electrical supply and cable routing
Suspension approval, where applicable
Installation access and emergency-route requirements
Do not assume that all exhibition venues allow the same maximum height or require the same clearances.
For custom or unusually large structures, provide the organizer's technical requirements to the manufacturer during the design stage.
7. Prepare a Complete SEG Lightbox RFQ
For professional procurement, a complete RFQ helps the manufacturer recommend the appropriate configuration and avoid unnecessary revisions.
SEG Lightbox RFQ Checklist
| Information | What to Provide |
|---|---|
| Booth Layout | 3×3m, 3×6m, 6×6m, or custom floor plan |
| Required Dimensions | External frame width, height, and available depth |
| Display Configuration | Single-sided, double-sided, straight, corner, or multi-structure |
| Lighting Requirements | Applicable direct-backlit or edge-lit system |
| Module Requirements | Existing SEGPRO® modules or new configuration |
| Graphic Requirements | Number of graphic sets and replacement needs |
| Order Quantity | Initial order and anticipated repeat purchases |
| Destination Market | Country and applicable project documentation requirements |
| Logistics | Packing restrictions, shipment method, and delivery schedule |
For projects that require custom sizing or unusual booth configurations, Lintel's engineering team can review the application, dimensions, structure, and production requirements before confirming the most suitable solution.
8. Evaluate Supplier Documentation and Long-Term Compatibility
A professional SEG lightbox supplier should support both the initial installation and future replacement or expansion requirements.
Product and Compliance Documentation
Lintel's SEGPRO® product range has relevant certifications, test reports, and compliance documentation, including CE, UL, RoHS, REACH, UN38.3, and MSDS documentation.
These documents cover different regulatory and technical purposes. Their applicability depends on the product model, components, electrical configuration, and destination market.
For XQUIC™ folding display applications, B1 fire-rated fabric options are available.
Buyers should request the applicable documentation for the specific product and configuration being purchased.
Repeat Orders and Replacement Modules
For modular display systems, long-term compatibility is an important purchasing consideration.
By sourcing additional modules from the same manufacturer and corresponding system, buyers can extend or replenish existing display inventories without redesigning the entire structure.
For Lintel's modular lightbox systems, LED strips are pre-installed in the modules, reducing separate lighting installation work.
When placing repeat orders, provide the existing product model and configuration so the corresponding modules and lighting specifications can be supplied.
Frequently Asked Questions
What size SEG lightbox should I choose for a 3×3m exhibition booth?
A backwall approximately 2–3m wide is a practical starting point for many 3×3m inline booths. The final width and height depend on the floor plan, booth furniture, structural requirements, and organizer regulations.
Does the advertised SEG lightbox size include the external frame dimensions?
Yes. For Lintel lightboxes, the nominal size corresponds to the overall external frame dimensions. The finished SEG graphic dimensions differ and should be confirmed using the corresponding product template.
Can I extend an existing modular SEG lightbox?
Yes, when using compatible modules from the same system. Straight extensions can be planned by adding the corresponding module dimensions. Corner layouts and other structural configurations require confirmation of the connection design.
How are large SEG lightboxes reinforced and transported?
Lintel can use double-layer lightbox structures or more robust aluminum profiles for larger configurations. Applicable portable systems use wheeled Oxford-fabric bags with EPE protective inserts. Packing arrangements depend on the product and project.
Can I order additional modules for an existing SEGPRO® lightbox system?
Yes. Order the corresponding compatible modules from Lintel and provide the existing model or configuration. LED strips are pre-installed in the modular lightbox components, simplifying repeat installation.
Conclusion: Select the Right Size, Structure, and System
The best SEG lightbox size is determined by the exhibition layout, required display dimensions, lighting configuration, structural stability, and future reuse requirements.
For professional exhibition contractors and display distributors, modular compatibility, accurate graphic specifications, protective packaging, and repeat-order consistency are equally important.
Established in 1998 and serving customers across 138+ countries, Lintel Display provides modular SEG lightbox systems, folding display solutions, and custom display manufacturing support for international exhibition projects.
Whether you are planning a compact 3×3m booth or a larger modular illuminated exhibition structure, our team can help confirm the appropriate dimensions, configuration, and production requirements.
