LT-PLF120F1
120MM · RGB Edge · Tool-Free · Modular
Extra-Wide Modular RGB Display for Exhibition Backdrops
The CHROMIX™ 120 RGB LED Edge Frame (LT-PLF120F1) in the 3000 × 2500mm configuration is designed for large exhibition backdrops, branded display walls and modular booth installations. Its 3-meter-wide frame features double-sided RGB edge lighting, tool-free conductive connections and reusable modular components.

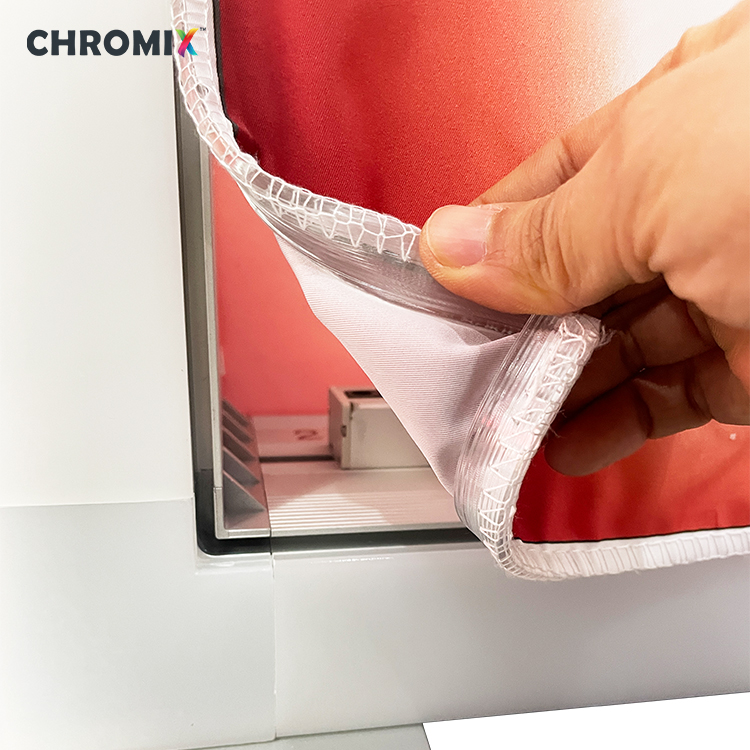

The standard configuration is an RGB illuminated frame without printed graphics. Optional SEG fabric graphics can be added for branding, with additional LED strips available for SEG backlighting.
Available frame options include white flame-retardant PVC, black PVC and silver 6063-T5 aluminum.
Explore the CHROMIX™ RGB Frame System.
Standardized Components. Tool-Free Connections.
The CHROMIX™ 120 system uses modular frame sections, conductive connectors and removable components for efficient installation and repeated exhibition use.
Half feet and leveling feet for different display configurations.

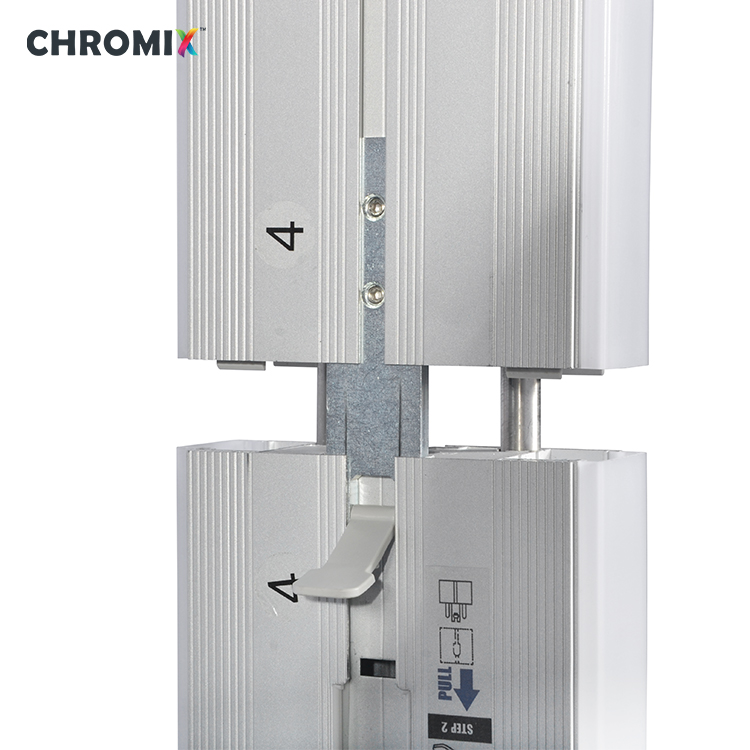

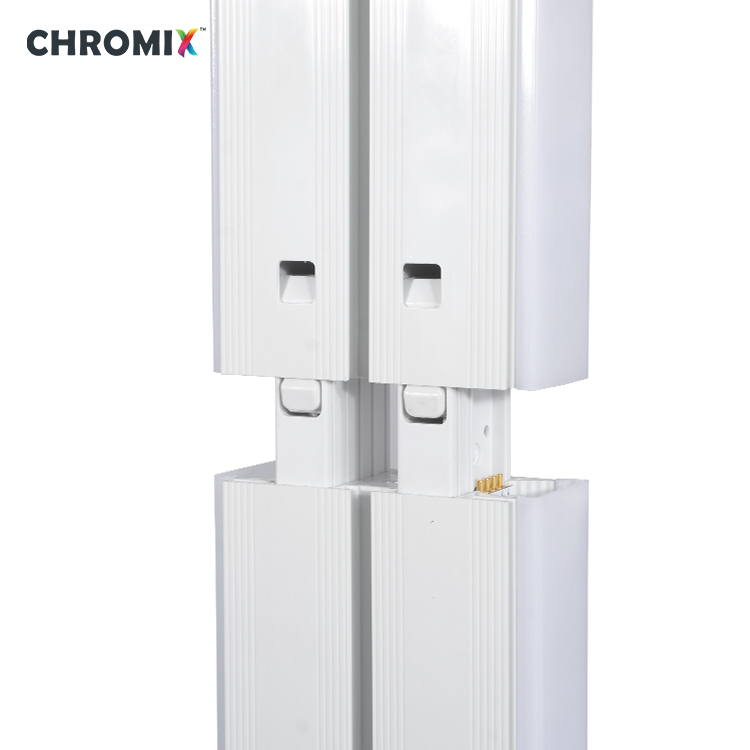

Quick-lock frame assembly with plug-in electrical connections—no separate wiring between compatible modules.
Included support poles provide structural reinforcement when SEG graphics are installed.

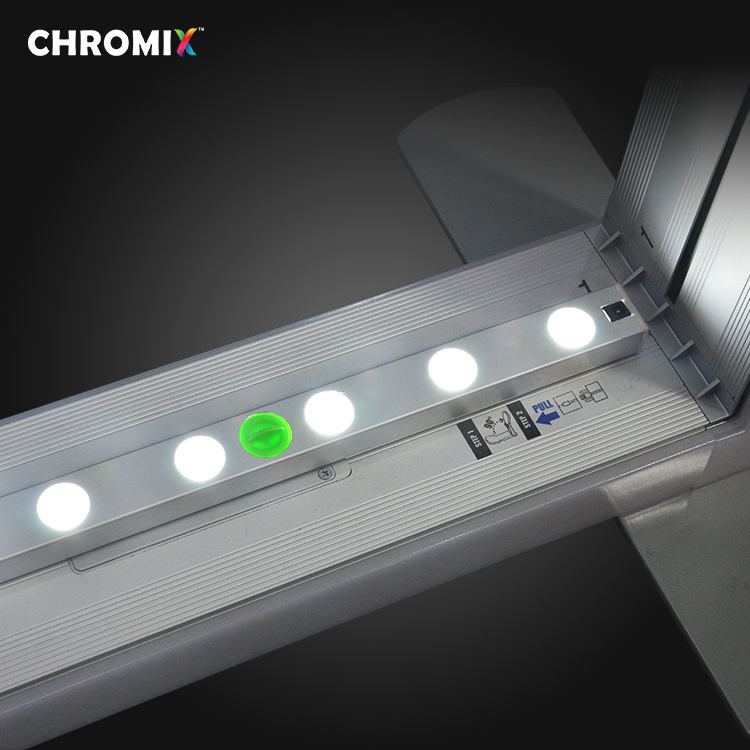

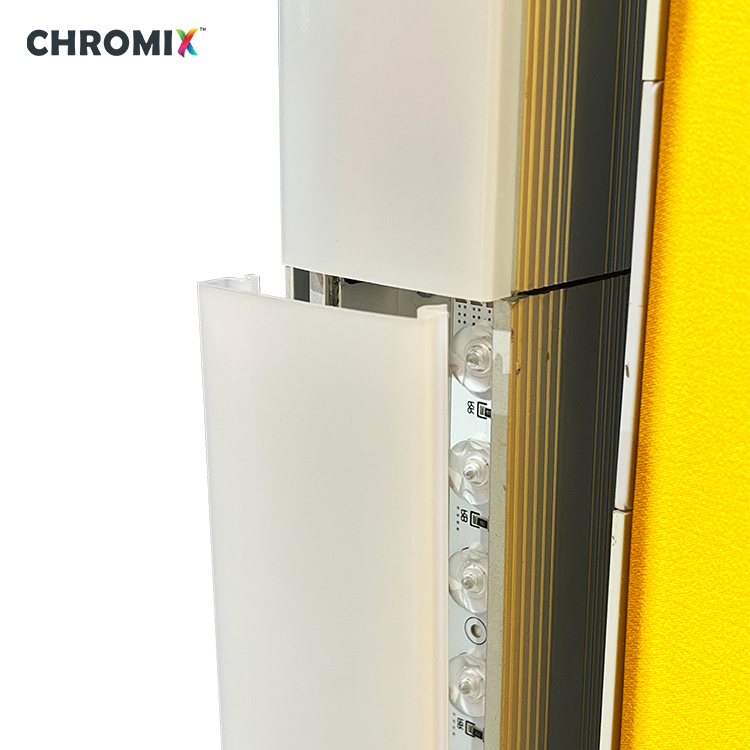

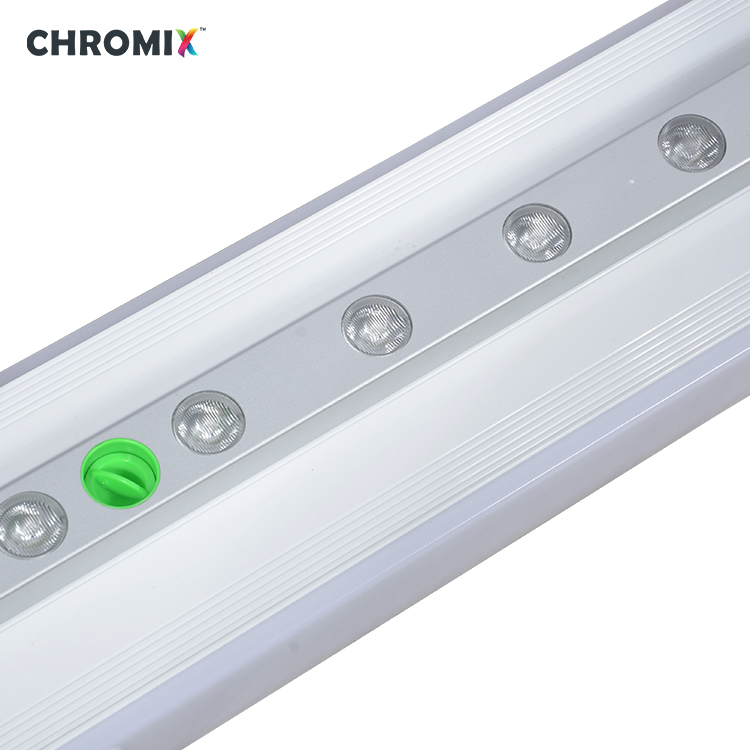

Detachable LED bars for easier installation, maintenance and replacement.
| Specification | Details |
|---|---|
| Model | LT-PLF120F1 |
| Frame Size | 3000 × 2500mm |
| Profile | 120mm |
| Frame Options | White Flame-Retardant PVC / Black PVC / Silver 6063-T5 Aluminum |
| RGB Lighting | Double-Sided RGB Edge Lighting |
| RGB Control | Remote Control / WiFi APP |
| Power Supply | 24V / 8.3A / 240W |
| Assembly | Tool-Free, Conductive Plug-In Connections |
| Support Poles | Included as Standard |
| Standard Configuration | RGB Edge Frame, Without SEG Graphics |
| Optional Configuration | SEG Graphics / LED Backlighting |
| SEG Graphic Size | 2915 × 2415mm |
| Packing Size | 420 × 310 × 1400mm |
| Packing | EPE Foam + Trolley Bag |
Specifications and packing details should be confirmed according to the selected frame material and lighting configuration.
One System. Multiple Display Configurations.
The 3000 × 2500mm RGB frame is a standard configuration within the CHROMIX™ 120 modular system. Standardized corner components and straight frame sections can be combined to create different widths and heights.
| Frame Width | Standard Heights |
|---|---|
| 1000mm | 2000 / 2250 / 2500mm |
| 2000mm | 2000 / 2250 / 2500mm |
| 3000mm | 2000 / 2250 / 2500mm |
| 4000mm | 2000 / 2250 / 2500mm |
| 5000mm | 2000 / 2250 / 2500mm |
| 6000mm | 2000 / 2250 / 2500mm |
Additional 2400mm-height configurations are available.
3′ × 8′ · 4′ × 8′ · 6′ × 8′ · 8′ × 8′ · 10′ × 8′ · 15′ × 8′ · 20′ × 8′
Optional SEG graphics are sized for each configuration. For the 3000 × 2500mm frame, the specified SEG graphic size is 2915 × 2415mm.
Quick Installation. Repeatable Setup.
Arrange the frame sections and corner components.
Insert the quick-lock connectors.
Assemble the modular frame structure.
Install the RGB LED bars and engage the conductive connections.
Attach the support poles and suitable feet.
Connect the RGB controller and power supply.
The CHROMIX™ 120 features double-sided RGB edge lighting with up to 16 million colors. Lighting colors and effects can be adjusted via remote control or WiFi APP to match different branding and display requirements.
16 Million Colors · Remote Control · WiFi APP
Three Display Configurations. One Modular Frame System.
Expand Your Modular Display Configuration
Build corners and multi-directional structures.
Present product samples and promotional merchandise.
Integrate digital screens into display structures.
Display brochures and marketing materials.
CHROMIX™ accessories are compatible with the SEGPRO® Modular Light Box System, allowing both systems to share accessories for integrated exhibition and commercial display configurations.
The 3000mm-wide format creates a larger branding area for exhibition booth backwalls, product launches and promotional displays.
Combine the frame with compatible CHROMIX™ modules and angle connectors to build larger exhibition structures.
Add optional SEG graphics, backlighting and display accessories for product presentations and branded commercial spaces.
Reusable modular components, replaceable RGB LED bars and trolley-bag packing support repeated installations across events.
