LT-PLF120F1
120MM · RGB Edge · Tool-Free · Modular
Wide-Format Modular RGB Display for Exhibition Backdrops
The CHROMIX™ 120 RGB LED Edge Frame (LT-PLF120F1) in the 2000 × 2500mm configuration is part of Lintel's modular RGB display system. Featuring double-sided RGB edge lighting, tool-free conductive connections and a 120mm frame profile, it provides a reusable illuminated structure for exhibition backdrops, branded walls and commercial displays.

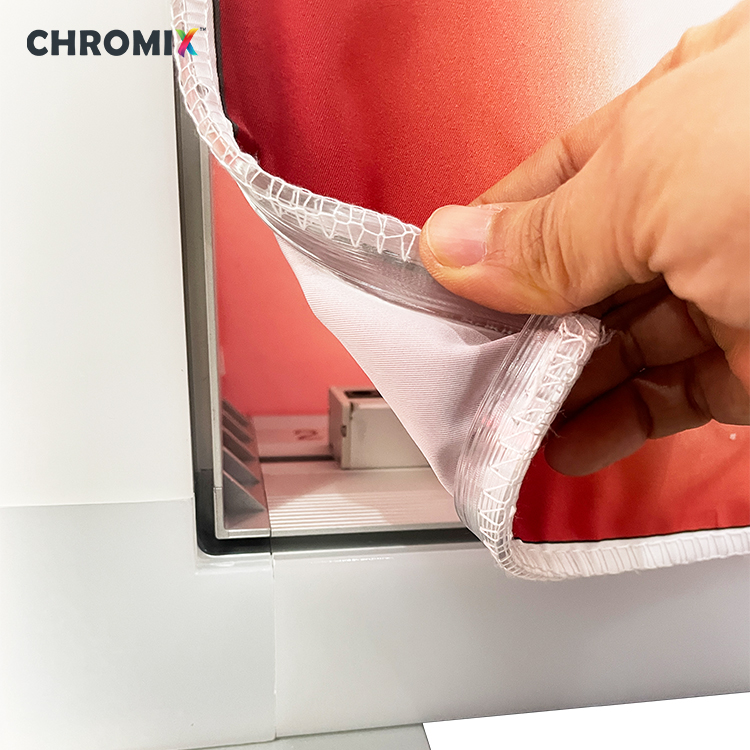

The standard configuration features RGB frame lighting without printed graphics. Optional SEG fabric graphics can be added for branded displays, with additional LED strips available for SEG graphic backlighting.
Available frame options include white flame-retardant PVC, black PVC and silver 6063-T5 aluminum.
Explore the CHROMIX™ RGB Frame System.
Standardized Components. Tool-Free Connections.
The CHROMIX™ 120 system combines modular frame sections, conductive connectors and removable components for efficient installation and repeated exhibition use.
Half feet and leveling feet for different display configurations.

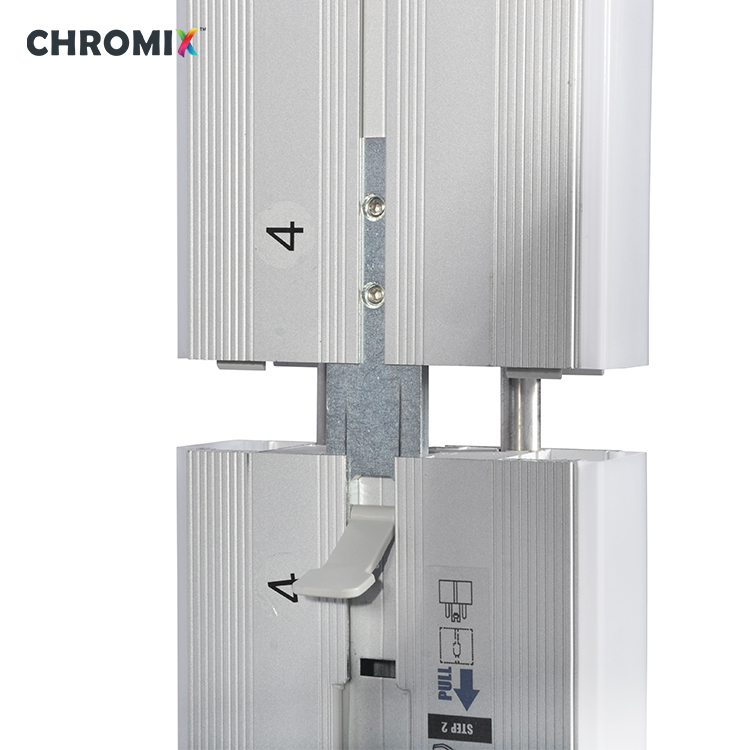

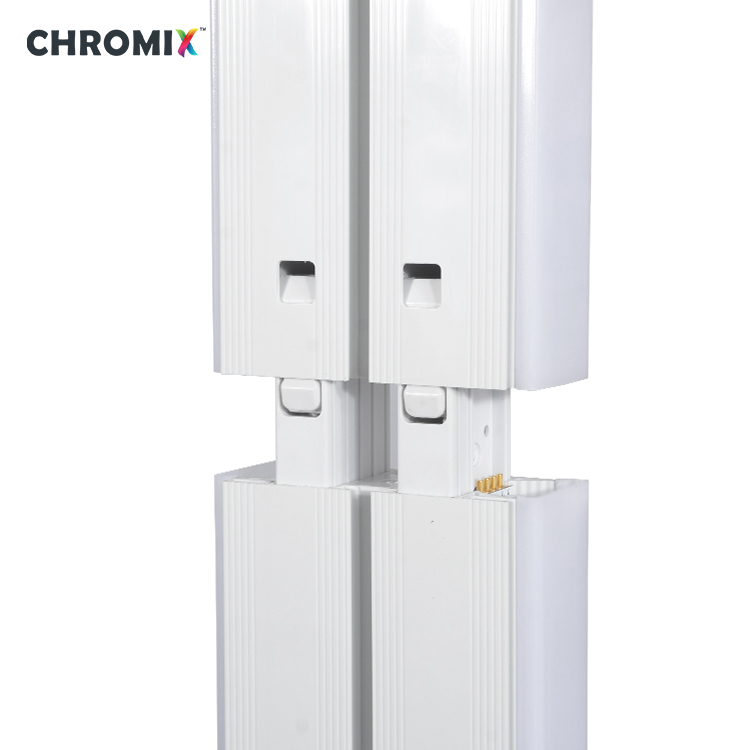

Quick-lock frame assembly with plug-in electrical connections—no separate wiring between compatible modules.
Included support poles provide structural reinforcement when SEG graphics are installed.

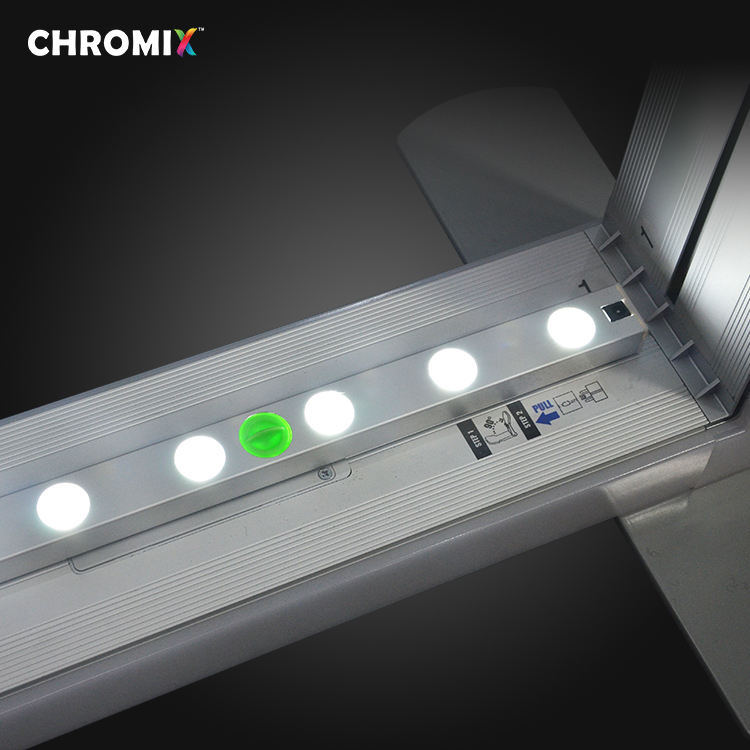

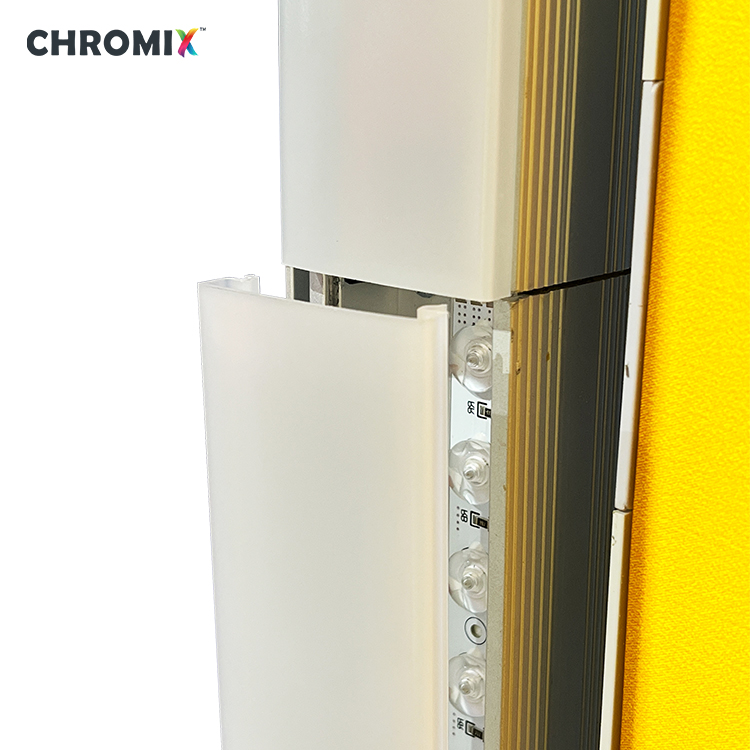

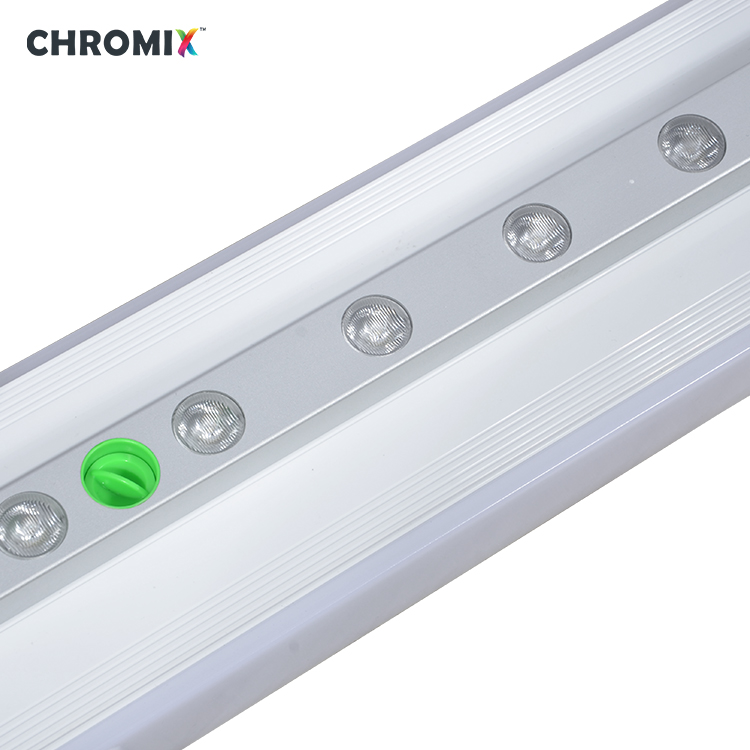

Detachable LED bars for easier installation, maintenance and replacement.
| Specification | Details |
|---|---|
| Product | CHROMIX™ 120 RGB LED Edge Frame |
| Frame Size | 2000 × 2500mm |
| Profile | 120mm |
| Frame Options | White Flame-Retardant PVC / Black PVC / Silver 6063-T5 Aluminum |
| RGB Lighting | Double-Sided RGB Edge Lighting |
| Assembly | Tool-Free, Conductive Plug-In Connections |
| Support Poles | Included as Standard |
| Standard Configuration | RGB Frame, Without SEG Graphics |
| Optional Configuration | SEG / Mesh Graphics / LED Backlighting |
| SEG Graphic Size | 1915 × 2415mm |
| Packing Size | 420 × 240 × 1400mm |
Specifications and packing details should be confirmed according to the selected frame material and lighting configuration.
One System. Multiple Display Configurations.
The 2000 × 2500mm RGB frame is one of the standard configurations within the CHROMIX™ 120 modular system. Standardized frame sections can be combined to create different widths and heights for exhibition and commercial projects.
| Frame Width | Standard Heights |
|---|---|
| 1000mm | 2000 / 2250 / 2500mm |
| 2000mm | 2000 / 2250 / 2500mm |
| 3000mm | 2000 / 2250 / 2500mm |
| 4000mm | 2000 / 2250 / 2500mm |
| 5000mm | 2000 / 2250 / 2500mm |
| 6000mm | 2000 / 2250 / 2500mm |
Additional 2400mm-height configurations are also available.
3′ × 8′ · 4′ × 8′ · 6′ × 8′ · 8′ × 8′ · 10′ × 8′ · 15′ × 8′ · 20′ × 8′
Optional SEG graphics are sized for the selected configuration. For the 2000 × 2500mm frame, the specified SEG graphic size is 1915 × 2415mm.
Quick Installation. Repeatable Setup.
Arrange the frame sections and corner components.
Insert the quick-lock connectors.
Assemble the modular frame structure.
Install the RGB LED bars and engage the conductive connections.
Attach the support poles and suitable feet.
Connect the RGB controller and power supply.
The CHROMIX™ 120 features double-sided RGB edge lighting with up to 16 million colors. Lighting colors and effects can be adjusted via remote control or WiFi APP to match different branding and display requirements.
16 Million Colors · Remote Control · WiFi APP
Three Display Configurations. One Modular Frame System.
Expand Your Modular Display Configuration
Build corners and multi-directional structures.
Present product samples and promotional merchandise.
Integrate digital screens into display structures.
Display brochures and marketing materials.
CHROMIX™ accessories are compatible with the SEGPRO® Modular Light Box System, allowing both systems to share accessories for integrated exhibition and commercial display configurations.
The 2000mm-wide format provides a larger branded display area for trade show backdrops and modular booth walls.
Combine RGB edge lighting with optional SEG graphics for seasonal campaigns, product launches and retail branding.
Create reusable illuminated display structures with optional accessories for product presentations and commercial installations.
Combine multiple CHROMIX™ frames and compatible connectors to create larger exhibition structures.
