LT-PLF120F1
120MM · RGB · Tool-Free · Plug-In Power
Modular RGB Edge Lighting for Exhibition & Commercial Displays
The CHROMIX™ 120 RGB LED Edge Frame (LT-PLF120F1) is a 1000 × 2500mm standard configuration within Lintel's modular RGB display system. Featuring double-sided RGB edge lighting, a 120mm frame profile and tool-free conductive connections, it is designed for reusable exhibition and commercial display installations.
The standard configuration features an illuminated RGB frame without SEG graphics. Optional SEG fabric graphics can be installed for branded displays, while additional LED strips allow the frame to be configured as an RGB edge-lit SEG light box.
Available frame finishes include white flame-retardant PVC, black PVC and silver 6063-T5 aluminum, offering material choices for different project requirements.
Explore the complete CHROMIX™ RGB Edge Frame System.
Standardized Components. Tool-Free Connections.
The CHROMIX™ 120 system uses modular frame sections and integrated conductive connectors to simplify installation, reconfiguration and component replacement.

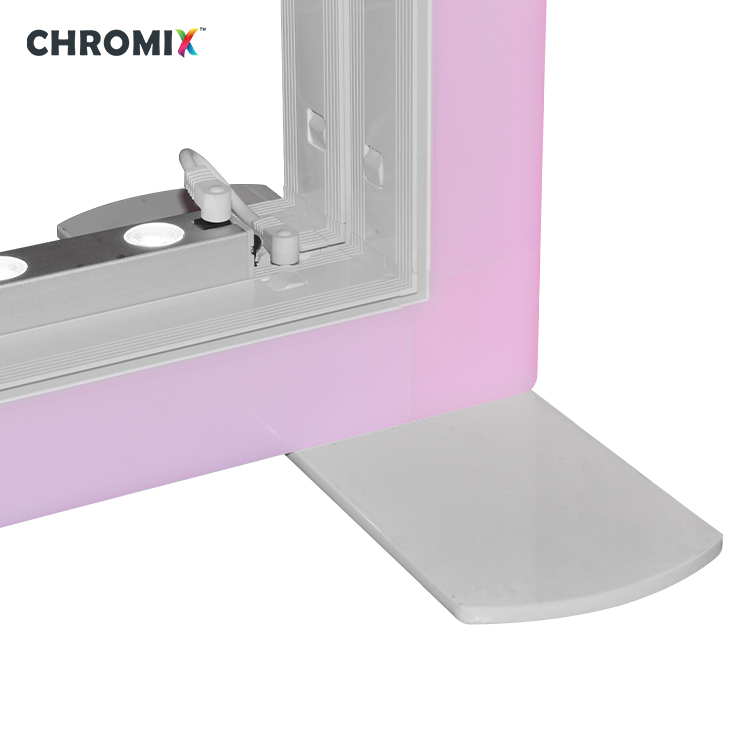

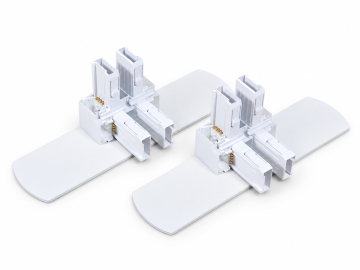

Half feet and leveling feet for different display configurations.

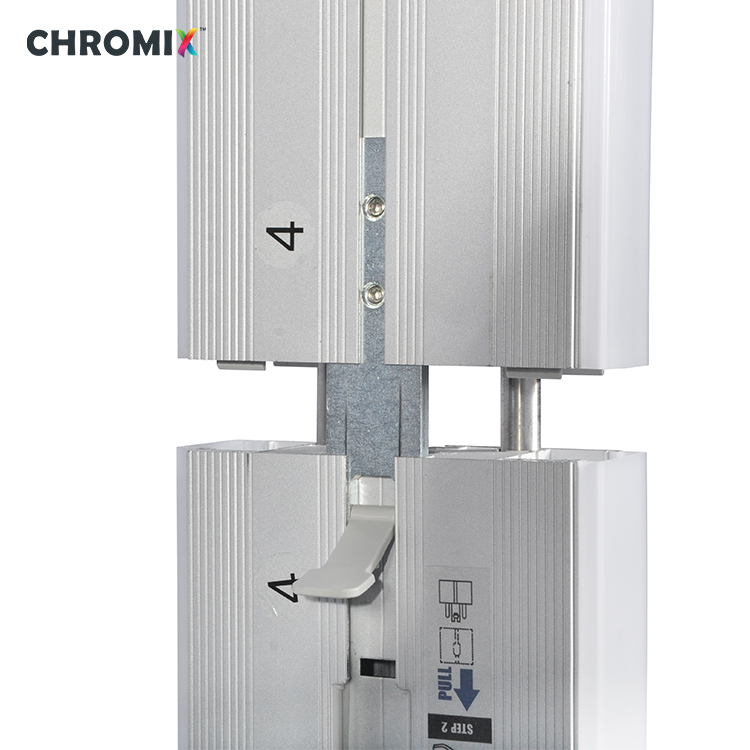

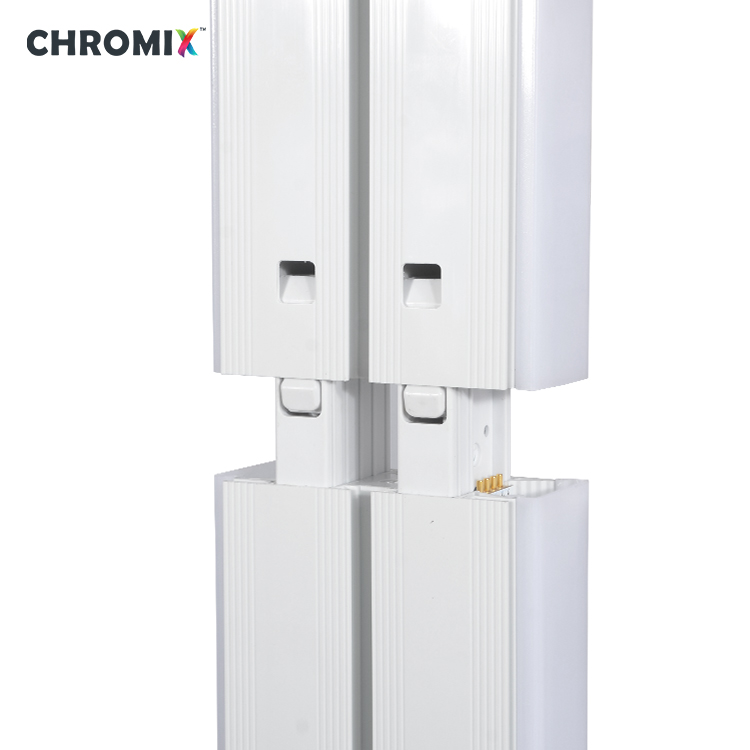

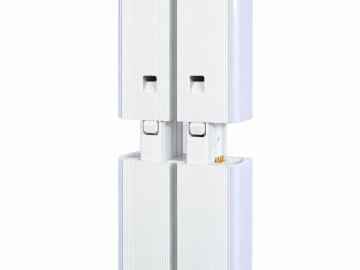

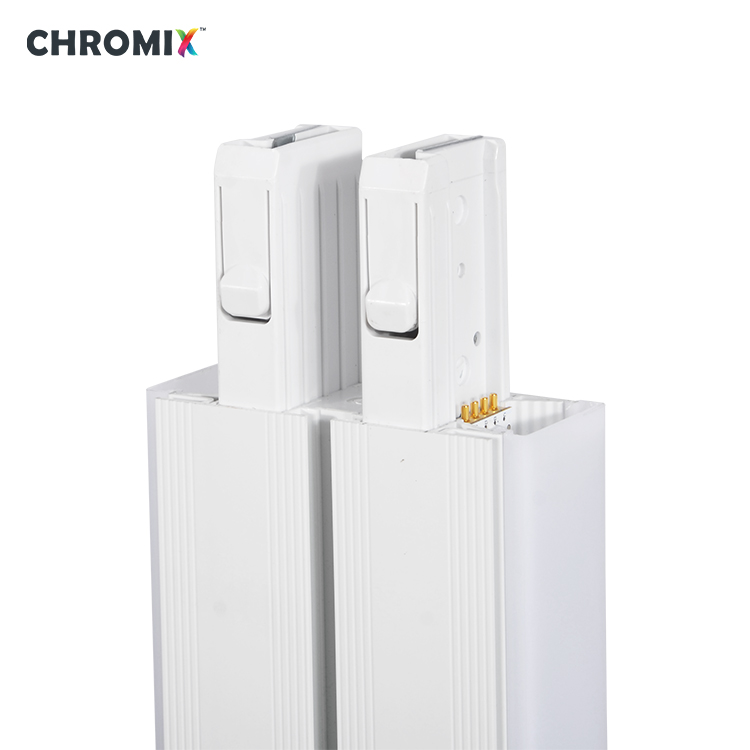

Quick-lock frame assembly with plug-in electrical connections—no separate wiring between modules.

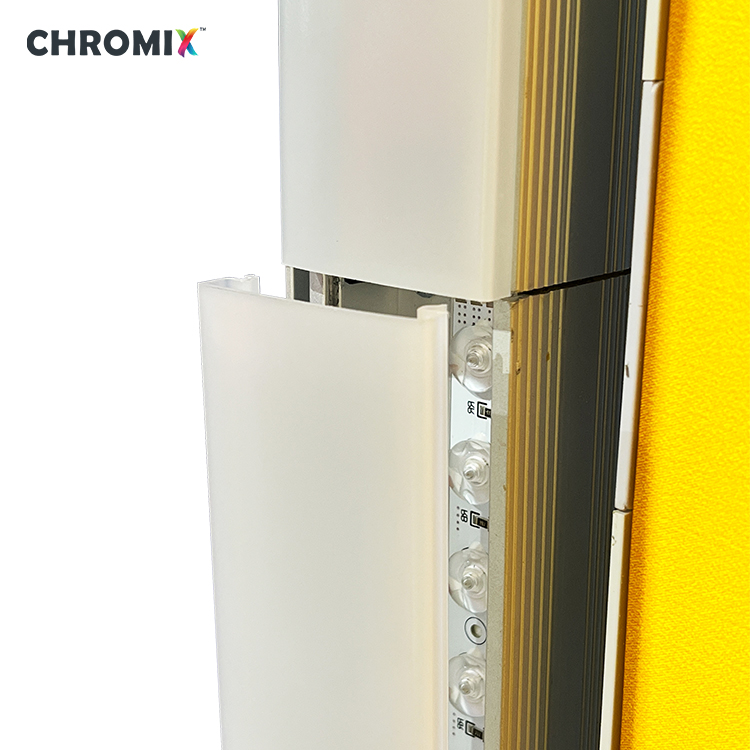

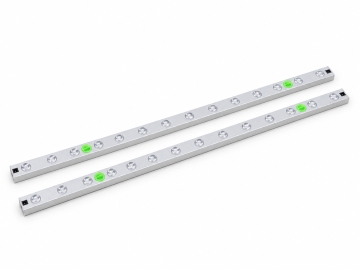

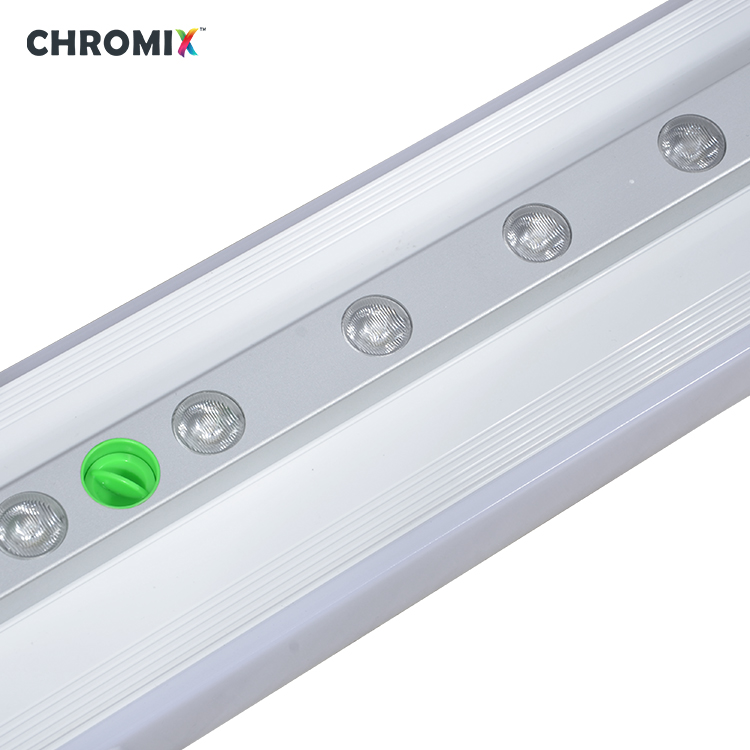

Detachable LED bars for easier installation, maintenance and replacement.

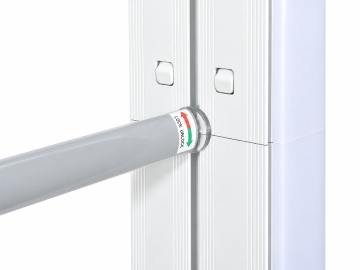

Standard support poles provide structural reinforcement when SEG graphics are installed.
| Specification | Details |
|---|---|
| Model | LT-PLF120F1 |
| Frame Size | 1000 × 2500mm |
| Profile | 120mm |
| Frame Options | White Flame-Retardant PVC / Black PVC / Silver 6063-T5 Aluminum |
| RGB Lighting | Double-Sided RGB Edge Lighting |
| Colors & Control | Up to 16 Million Colors / Remote / WiFi APP |
| Assembly | Tool-Free, Conductive Plug-In Connections |
| Standard Configuration | RGB Frame, Without SEG Graphics |
| Optional | SEG Graphics / LED Backlighting |
| Power Supply | 24V 8.3A, 240W |
| Packing | EPE Foam + Trolley Bag |
| Packing Size | 420 × 170 × 1400mm |
Specifications refer to the supplied LT-PLF120F1 configuration. Material, graphic and lighting options should be confirmed for each order.
One System. Multiple Display Configurations.

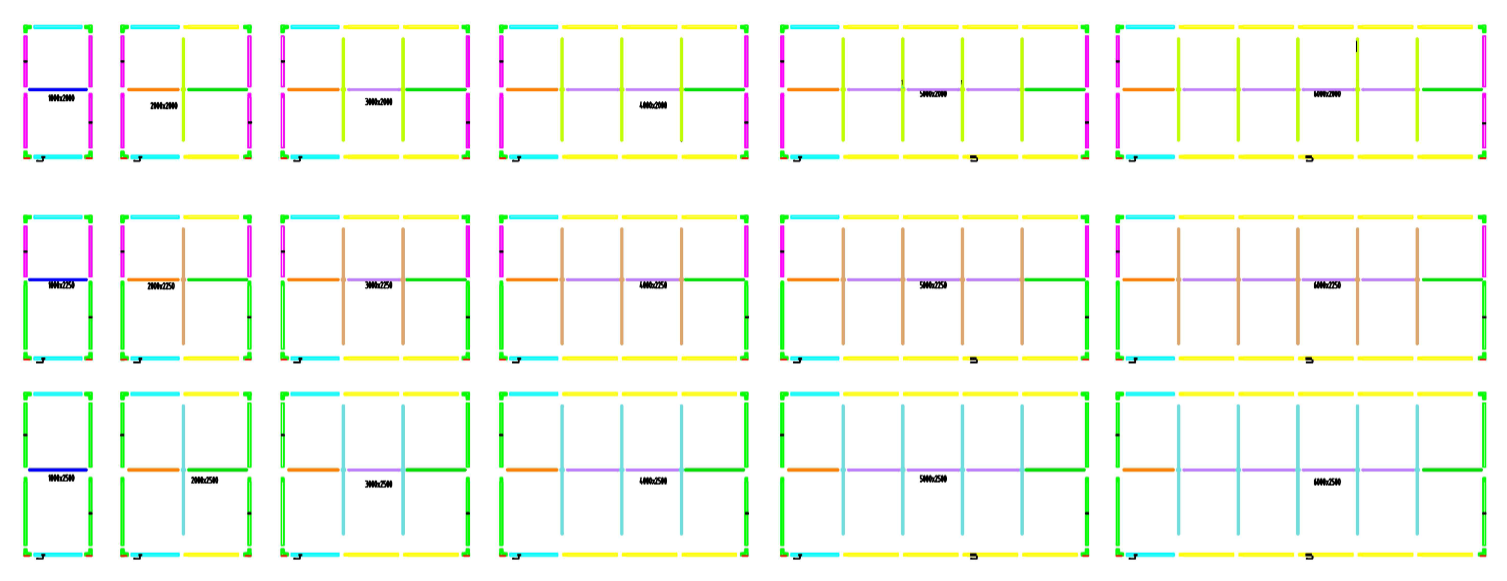

The 1000 × 2500mm frame is one of the standard configurations within the CHROMIX™ 120 modular system. Compatible straight sections and corner components can be combined to build different display widths and heights.
CHROMIX™ uses standardized corner components and straight frame sections to build different display widths and heights. The modular structure simplifies configuration, assembly and replacement while maintaining a consistent 120mm frame system across different display sizes.
| Frame Width | Standard Heights |
|---|---|
| 1000mm | 2000 / 2250 / 2500mm |
| 2000mm | 2000 / 2250 / 2500mm |
| 3000mm | 2000 / 2250 / 2500mm |
| 4000mm | 2000 / 2250 / 2500mm |
| 5000mm | 2000 / 2250 / 2500mm |
| 6000mm | 2000 / 2250 / 2500mm |
Additional 2400mm-height configurations and selected smaller formats are available within the product range.
| Nominal Size | Frame Dimensions |
|---|---|
| 3′ × 8′ | 915 × 2438mm |
| 4′ × 8′ | 1219 × 2438mm |
| 6′ × 8′ | 1830 × 2438mm |
| 8′ × 8′ | 2438 × 2438mm |
| 10′ × 8′ | 3048 × 2438mm |
| 15′ × 8′ | 4572 × 2438mm |
| 20′ × 8′ | 6096 × 2438mm |

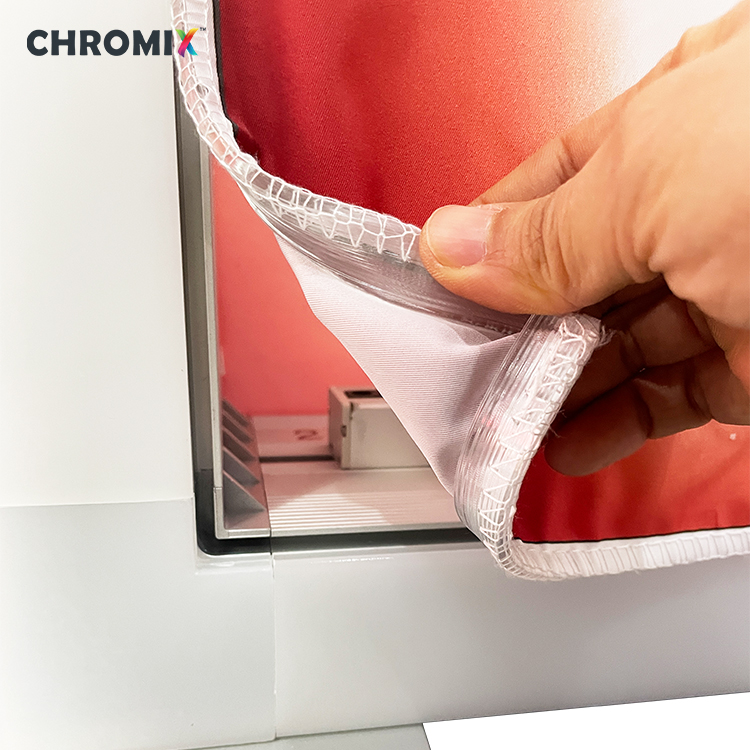

Optional SEG fabric graphics are sized to match the selected frame configuration.
For the 1000 × 2500mm frame, the specified graphic size is 915 × 2415mm.
Other modular configurations use their corresponding graphic dimensions. Please confirm the final artwork specifications before printing.

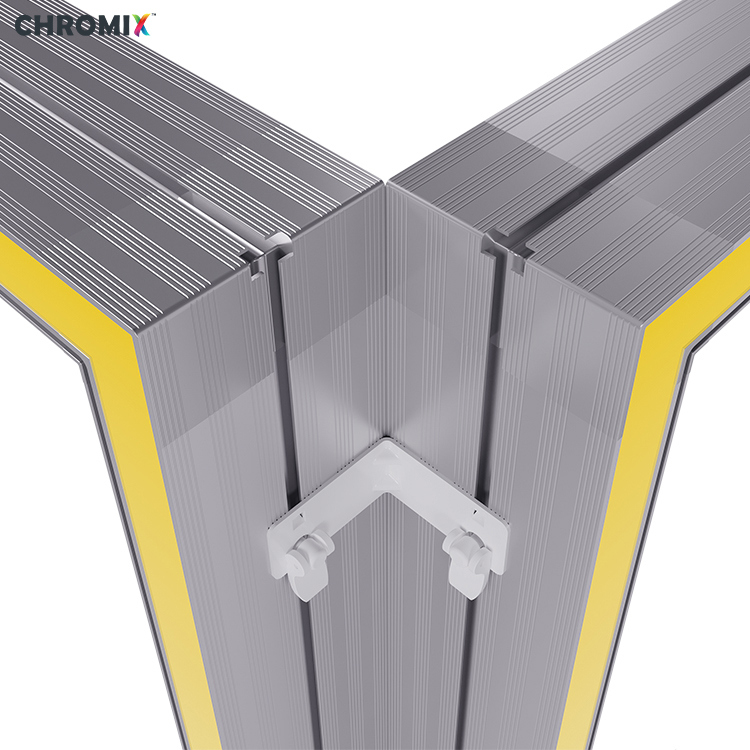

Place corner components to define the frame outline.

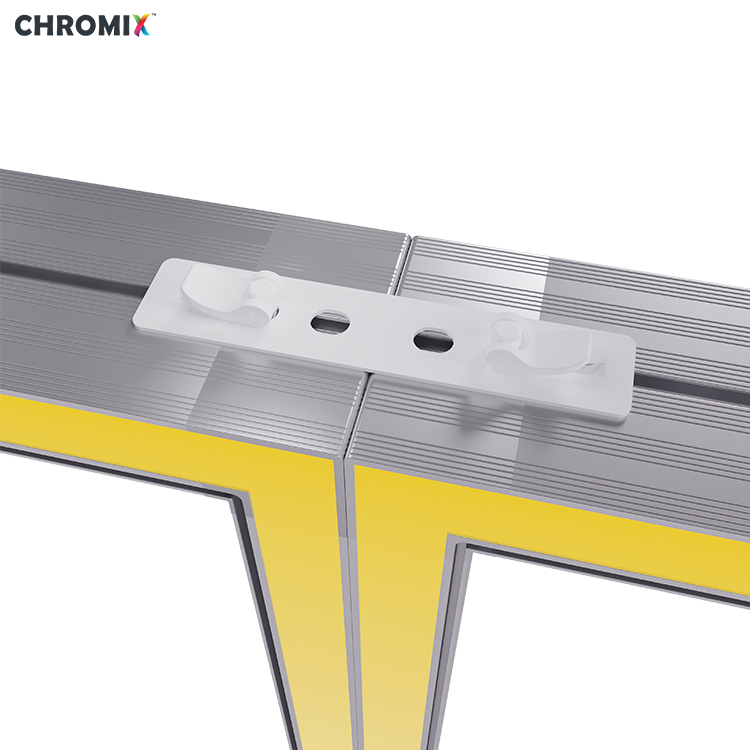

Insert straight connectors into the corner points.
Assemble straight sections into the frame structure.

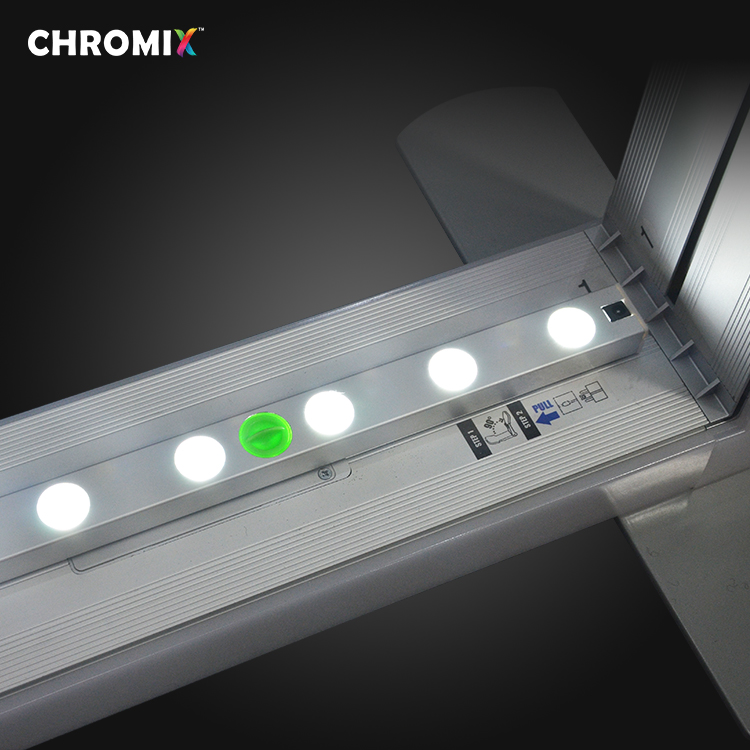

Slide RGB LED bars in; connectors engage directly.
Fit support bars to stabilize the structure.
Connect the controller and power on the 24V system.

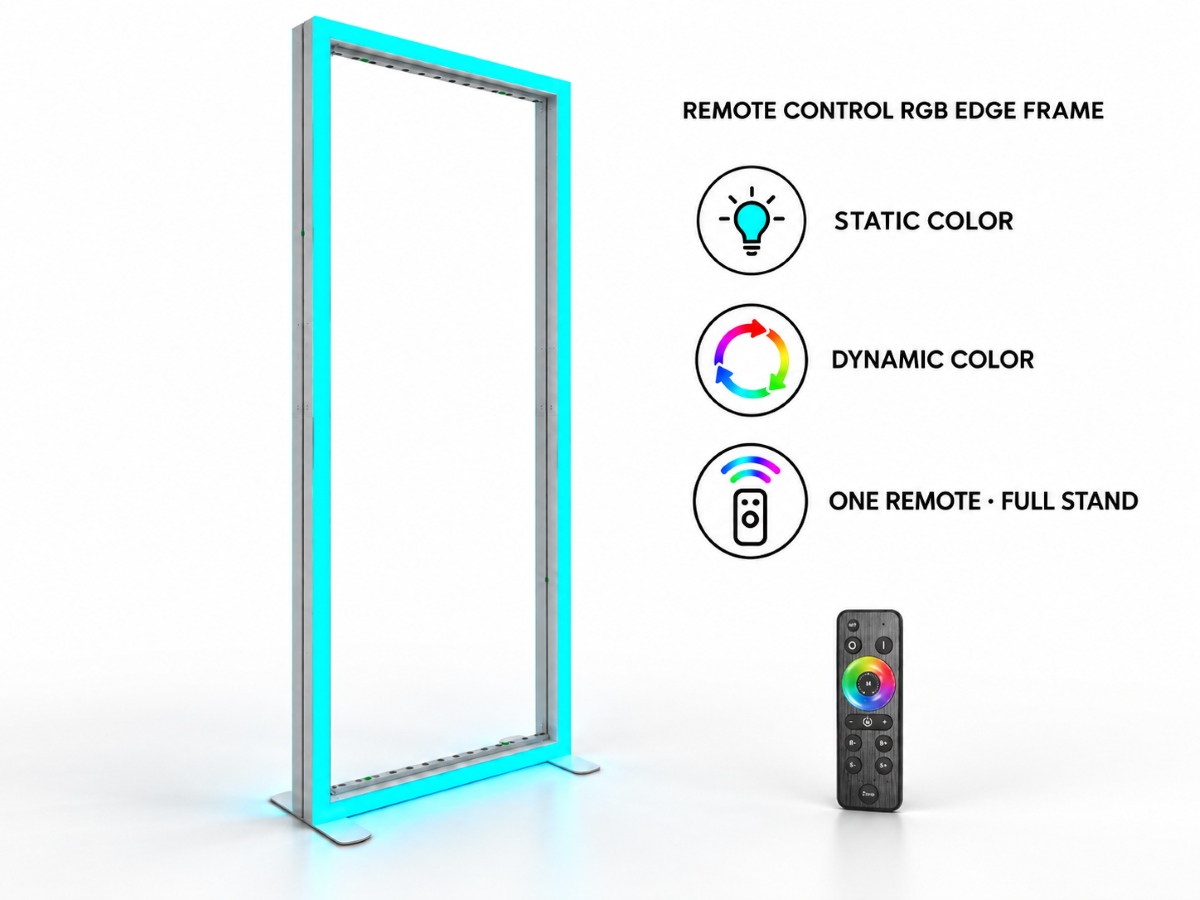

The CHROMIX™ 120 features double-sided RGB edge lighting with up to 16 million colors. Lighting colors and effects can be adjusted via remote control or WiFi APP to match different branding and display requirements.
16 Million Colors · Remote Control · WiFi APP

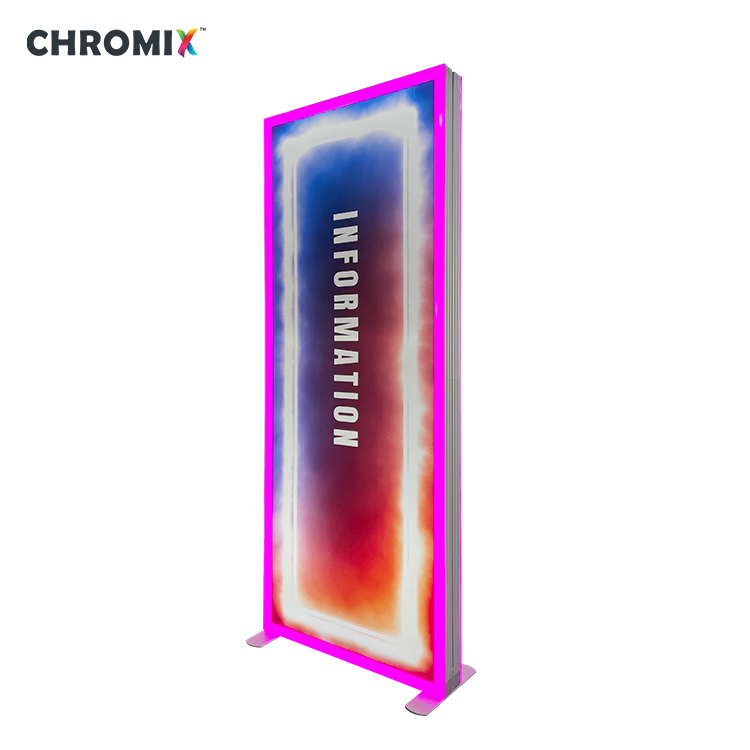

From RGB Edge Frame to RGB-Illuminated SEG Light Box
The standard LT-PLF120F1 configuration is an RGB illuminated frame without printed graphics.
Two optional configurations are available:
These configurations allow display suppliers to select the appropriate combination of frame lighting and graphic illumination for different project requirements.
Expand the Display Beyond a Standard Frame
Compatible modular accessories allow CHROMIX™ frames to be incorporated into more functional exhibition and retail display structures.

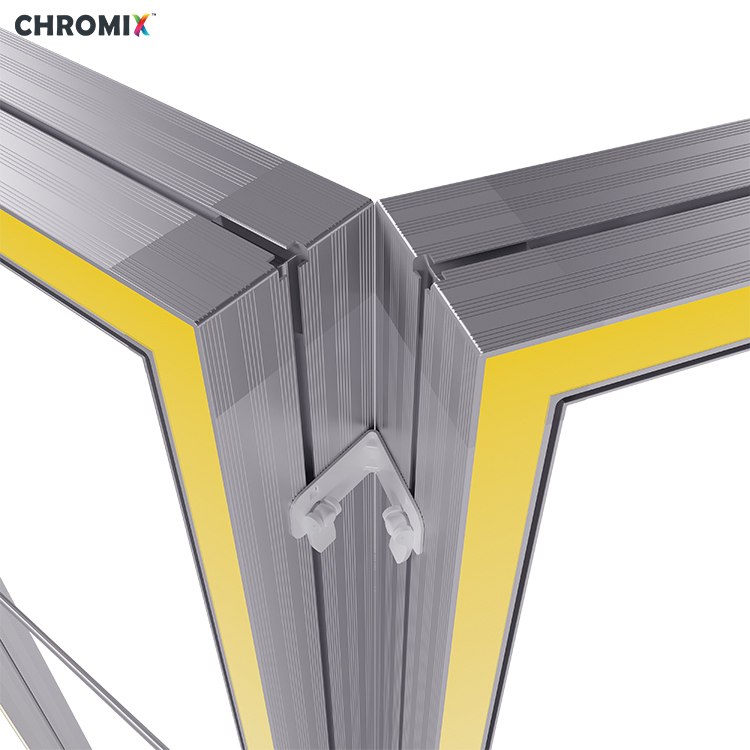

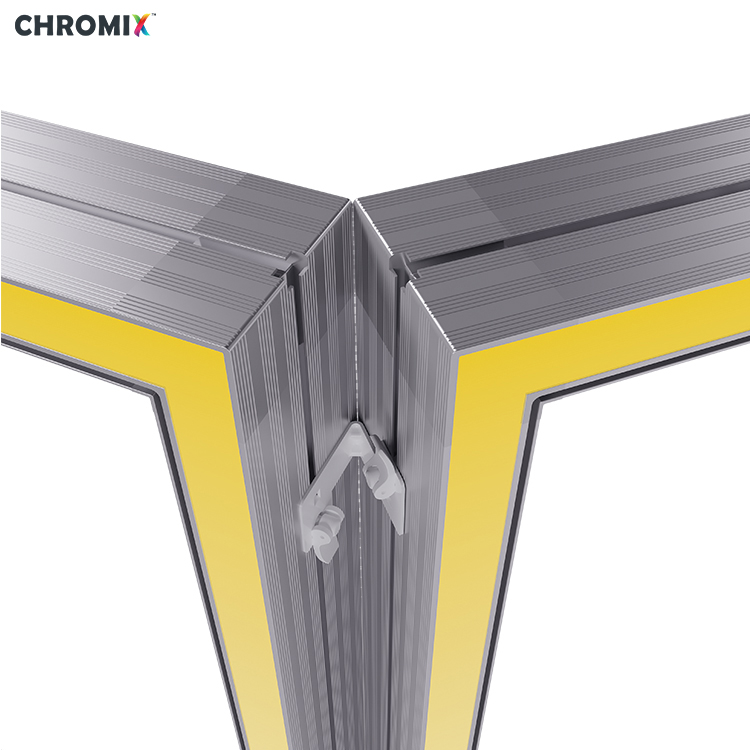

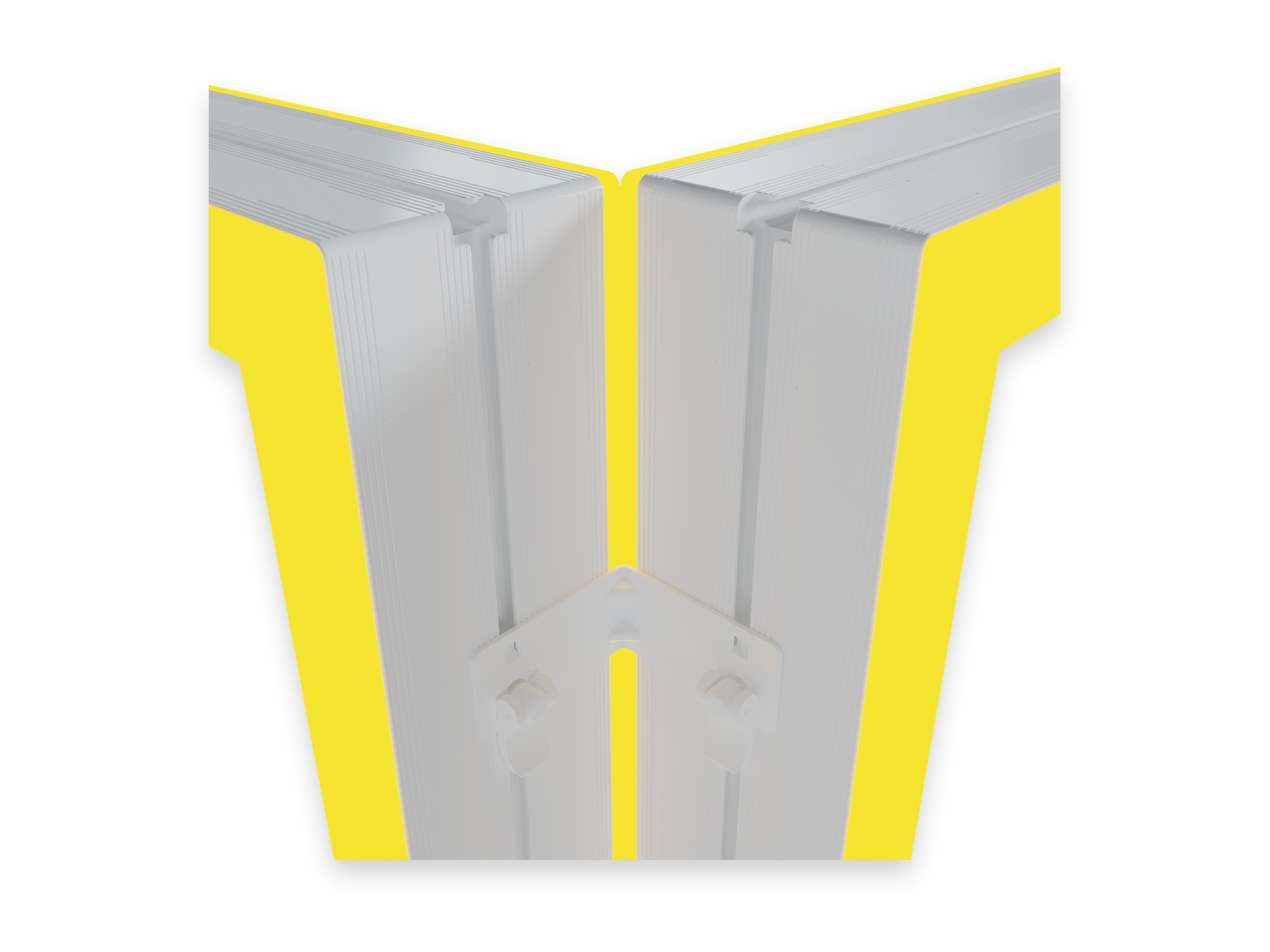

Connect frame sections at different angles for corners and complex exhibition layouts.

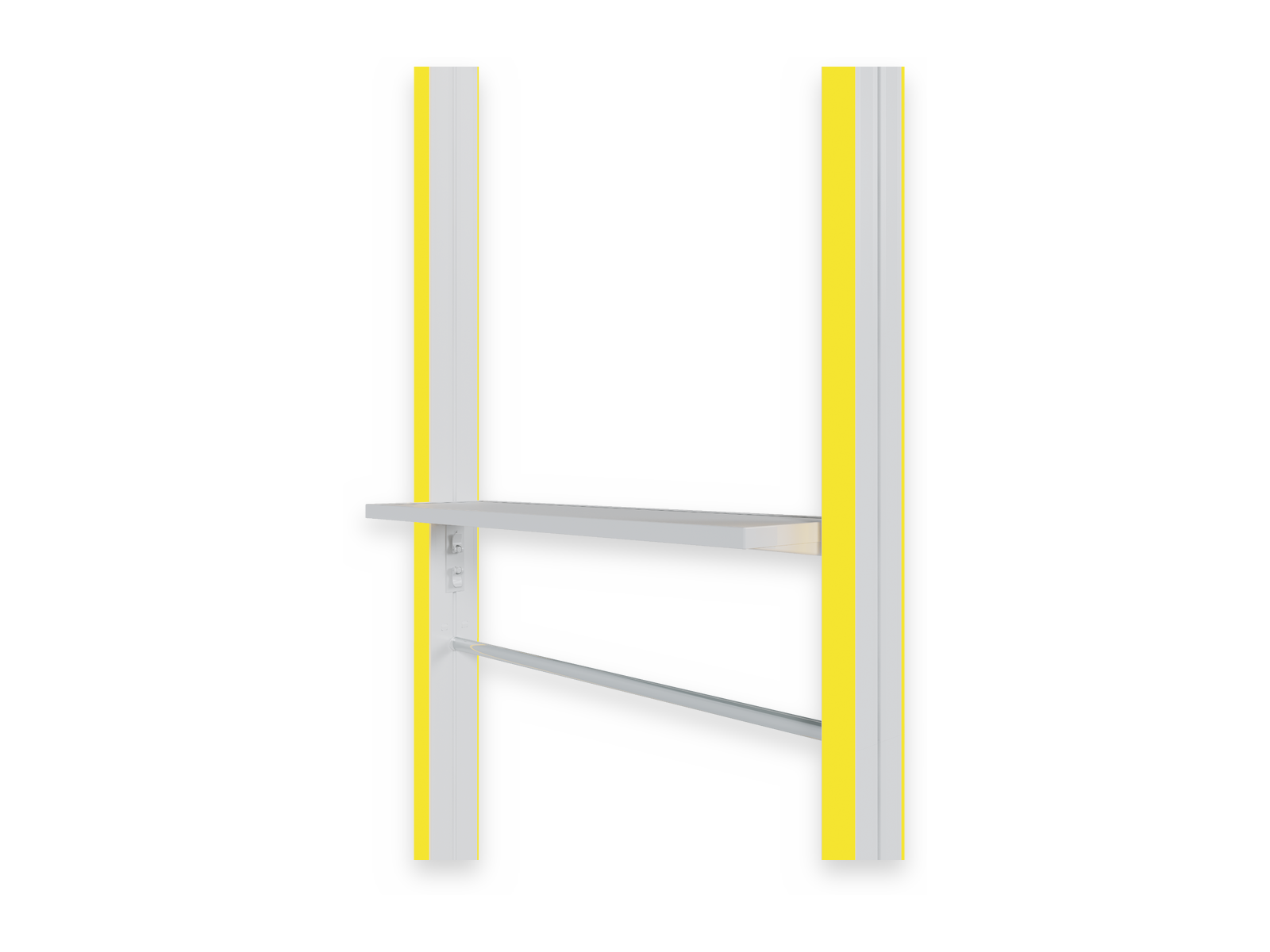

Mount shelves directly to the frame for products, samples and promotional materials.

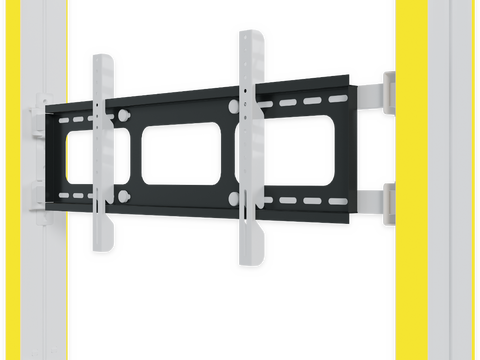

Add compatible TV holders for video, presentations and digital content.

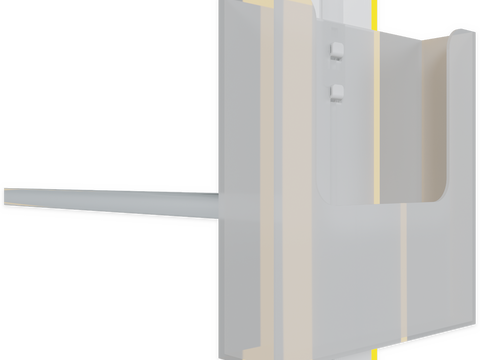

Display brochures, catalogs and promotional materials within the modular display structure.
Accessories are shared with the SEGPRO® 120mm Modular Light Box System, supporting coordinated component selection across compatible display projects.

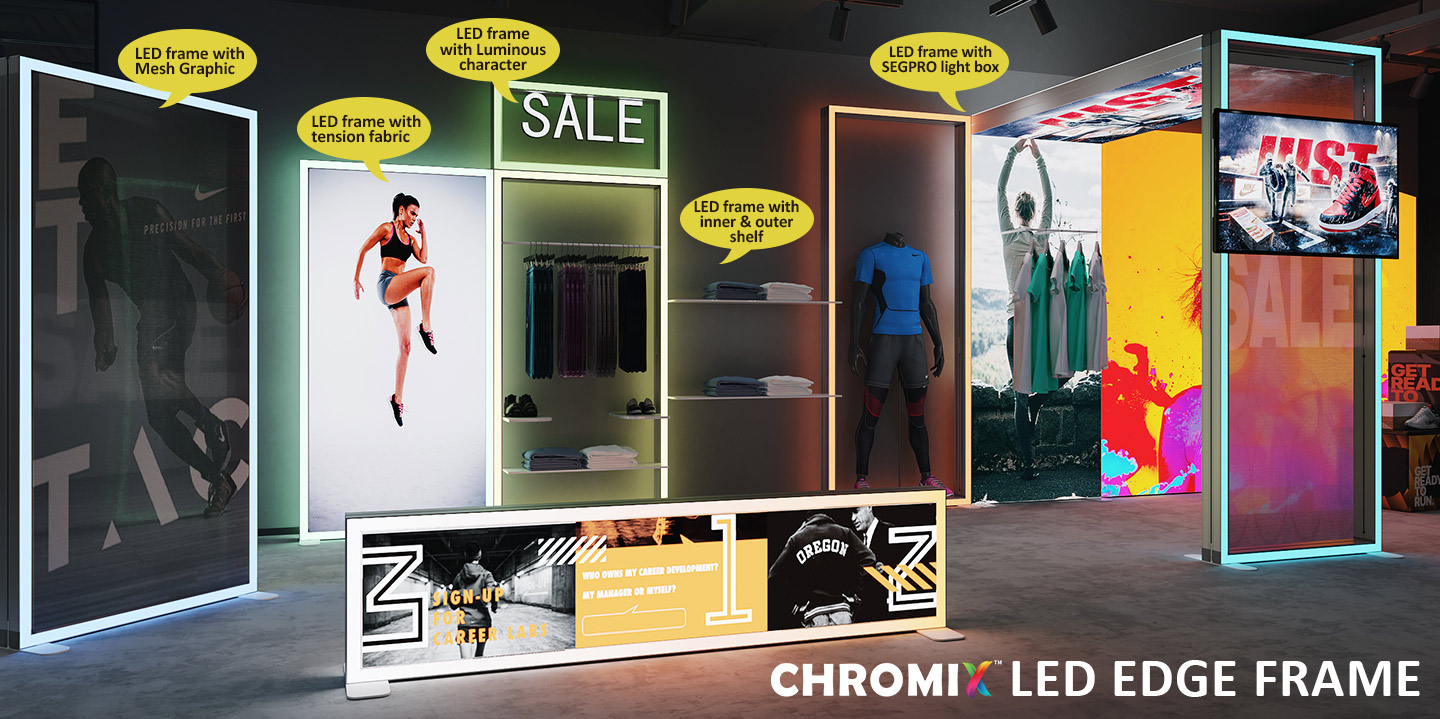

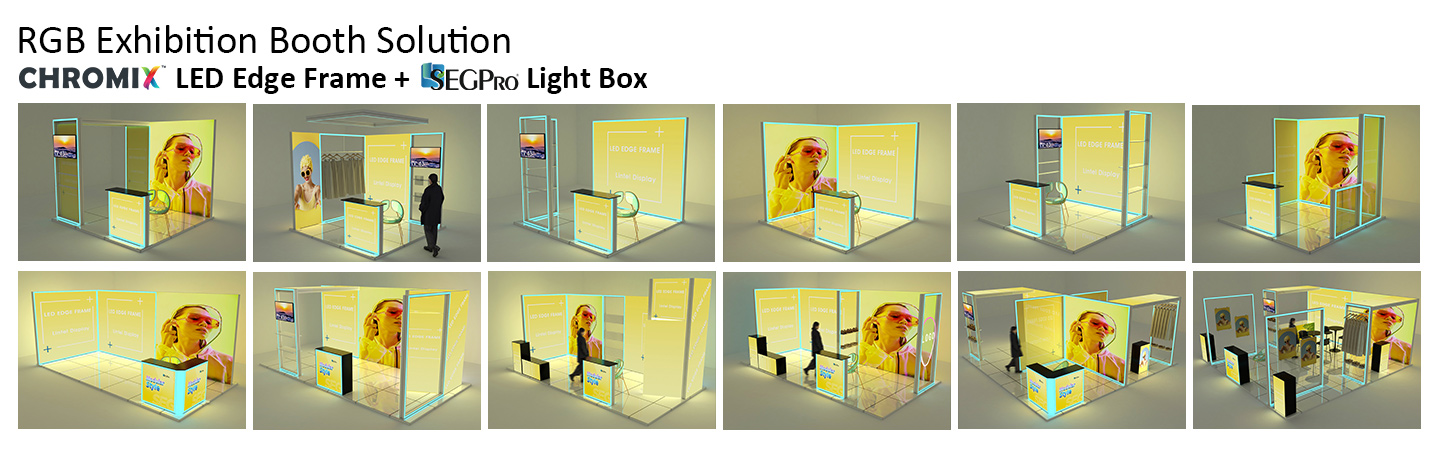

The 1000 × 2500mm CHROMIX™ RGB Edge Frame can be used as a standalone illuminated frame or combined with additional modular components for larger display structures.
Build illuminated brand displays and modular booth structures that can be assembled, dismantled and reused across events.
Use RGB lighting to complement campaign colors and create visual accents for branded commercial spaces.
Combine modular frames, optional SEG graphics and functional accessories for product presentations and visual merchandising.
Standardized frame sections, replaceable components and compact packing support repeated project configurations.
Explore more configurations in the CHROMIX™ RGB Frame System.
