LT-PLF120F1
120mm · ALU · Large-Format · Reusable
3m Wide Modular RGB Display for Exhibition Backdrops
The CHROMIX™ 120 RGB LED Edge Frame (LT-PLF120F1) features a 3000 × 2000mm configuration designed for wide exhibition backdrops, retail branding and modular display walls. Its 3-meter width provides an extended horizontal display area, while the 2-meter height offers a lower-profile alternative to the 3000 × 2500mm frame.
Built with a 120mm modular profile, double-sided RGB edge lighting and tool-free conductive connectors, the frame is designed for repeated exhibition installations. Available materials include white flame-retardant PVC, black PVC and silver 6063-T5 aluminum.
The standard configuration includes the RGB illuminated frame and support poles. SEG fabric graphics and additional LED backlighting are optional.
Explore the CHROMIX™ RGB Frame System.
Standardized Components. Tool-Free Connections.
The CHROMIX™ 120 system combines modular frame sections and removable components for efficient assembly and repeated use.
Half feet and leveling feet for flexible display setups.

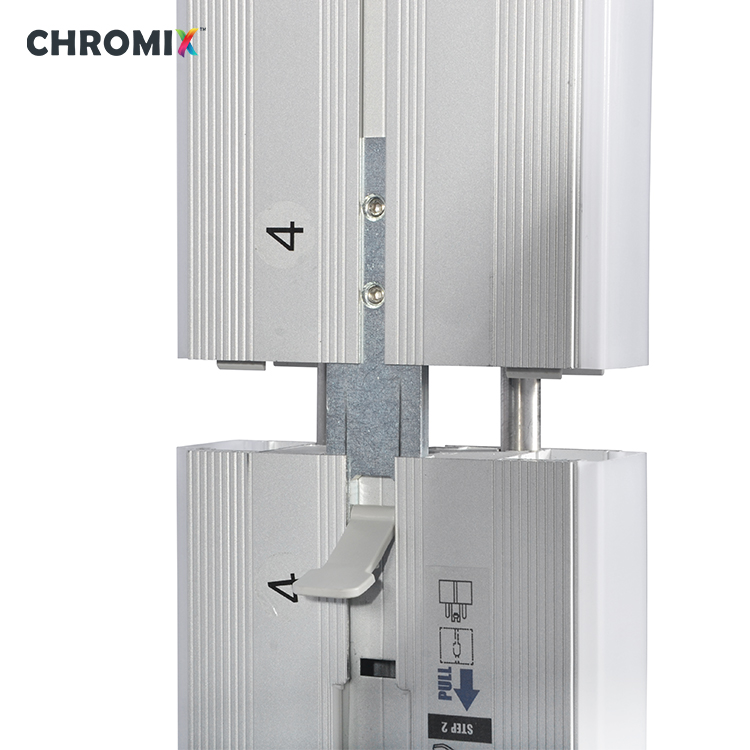

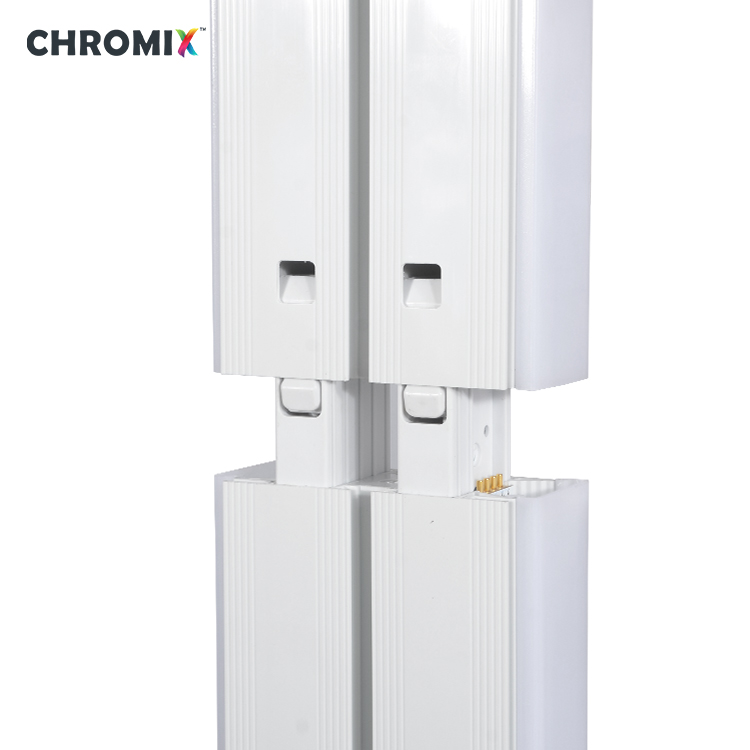

Tool-free frame joints with integrated electrical connections.
Included for added stability when SEG graphics are installed.

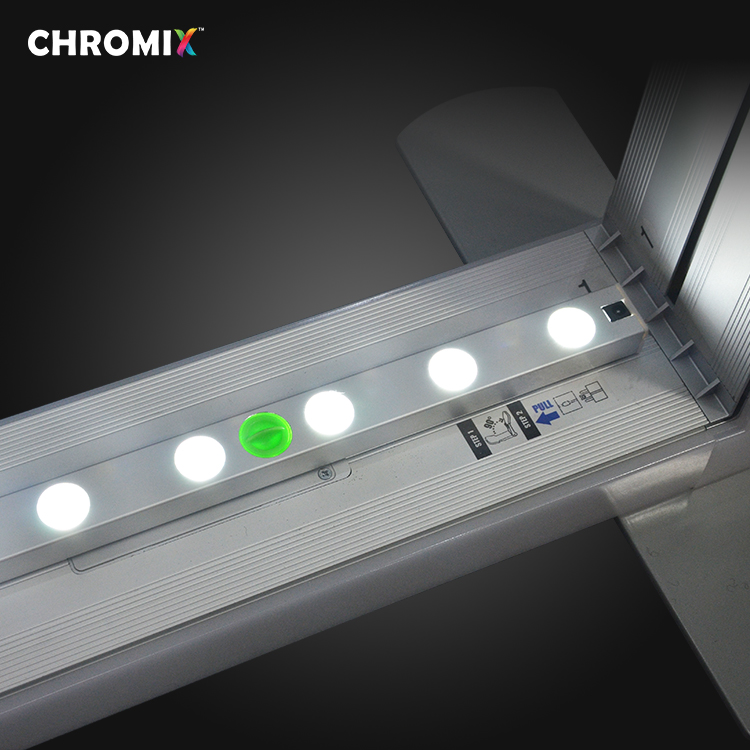

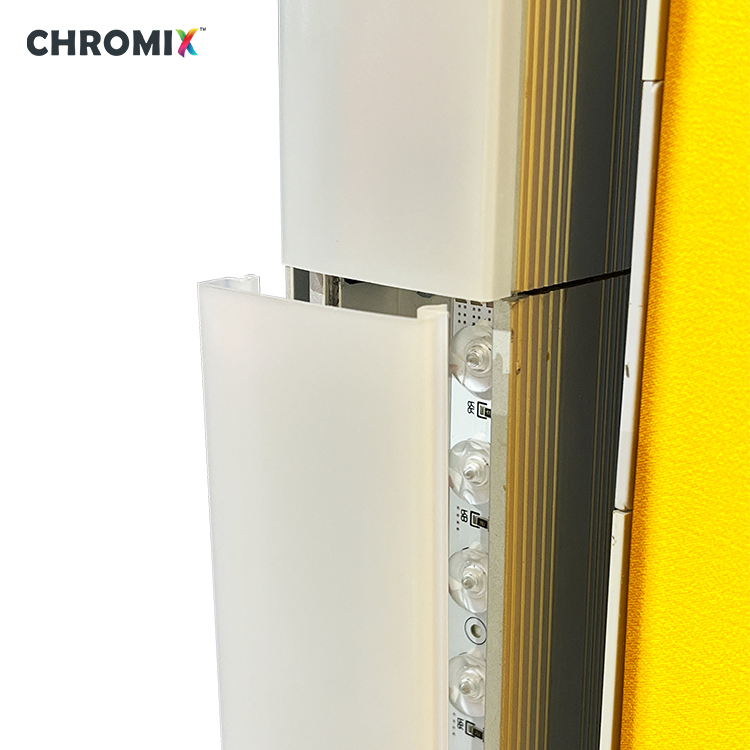

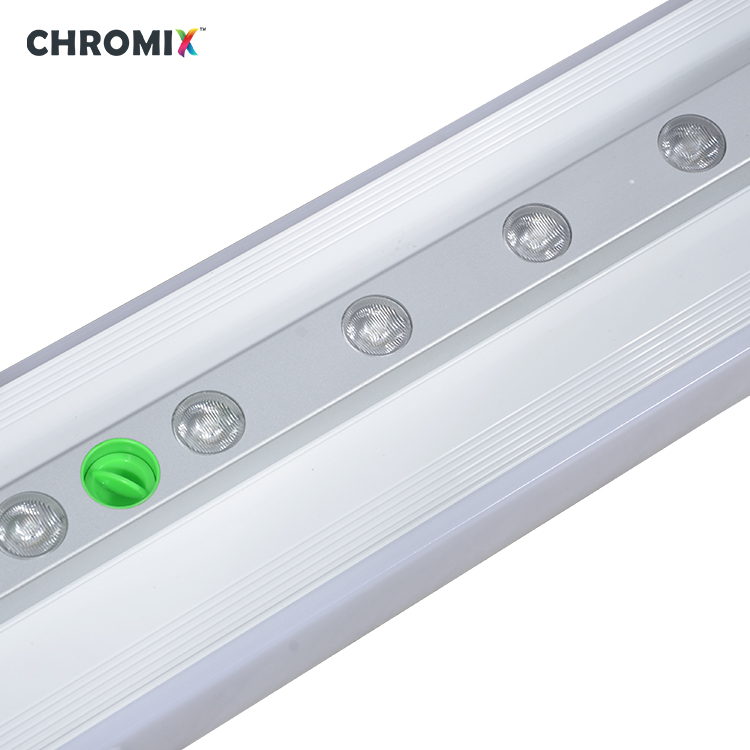

Detachable LED bars for convenient maintenance and replacement.
| Specification | Details |
|---|---|
| Model | LT-PLF120F1 |
| Frame Size | 3000 × 2000mm |
| Profile | 120mm |
| Frame Options | White Flame-Retardant PVC / Black PVC / Silver 6063-T5 Aluminum |
| RGB Lighting | Double-Sided RGB Edge Lighting |
| RGB Control | Remote Control / WiFi APP |
| Power Supply | 24V / 8.3A / 240W |
| Assembly | Tool-Free, Conductive Plug-In Connections |
| Support Poles | Included as Standard |
| Standard Configuration | RGB Edge Frame, Without SEG Graphics |
| Optional Configuration | SEG Graphics / LED Backlighting |
| SEG Graphic Size | 2915 × 1915mm |
| Packing Size | 420 × 300 × 1300mm |
| Packing | EPE Foam + Trolley Bag |
Specifications and packing details should be confirmed according to the selected frame material and lighting configuration.
One System. Multiple Display Configurations.
The 3000 × 2000mm RGB frame is a standard configuration within the CHROMIX™ 120 modular system. Standardized frame sections and compatible connectors allow different display widths and heights to be assembled for exhibition and commercial projects.
| Frame Width | Standard Heights |
|---|---|
| 1000mm | 2000 / 2250 / 2500mm |
| 2000mm | 2000 / 2250 / 2500mm |
| 3000mm | 2000 / 2250 / 2500mm |
| 4000mm | 2000 / 2250 / 2500mm |
| 5000mm | 2000 / 2250 / 2500mm |
| 6000mm | 2000 / 2250 / 2500mm |
Additional 2400mm-height configurations are available.
3′ × 8′ · 4′ × 8′ · 6′ × 8′ · 8′ × 8′ · 10′ × 8′ · 15′ × 8′ · 20′ × 8′
For the 3000 × 2000mm frame, the specified optional SEG graphic size is 2915 × 1915mm.
Quick Installation. Repeatable Setup.
Arrange the frame sections and corner components.
Insert the quick-lock connectors.
Assemble the modular frame structure.
Install the RGB LED bars and engage the conductive connections.
Attach the support poles and suitable feet.
Connect the RGB controller and power supply.
The CHROMIX™ 120 features double-sided RGB edge lighting with up to 16 million colors. Lighting colors and effects can be adjusted via remote control or WiFi APP to match different branding and display requirements.
16 Million Colors · Remote Control · WiFi APP
Extended Width. Lower Display Height.
The 3000mm width provides more horizontal branding space than the 2000 × 2000mm configuration while maintaining the same 2000mm height. This makes it suitable for exhibition layouts requiring a wider backdrop without increasing the overall display height.

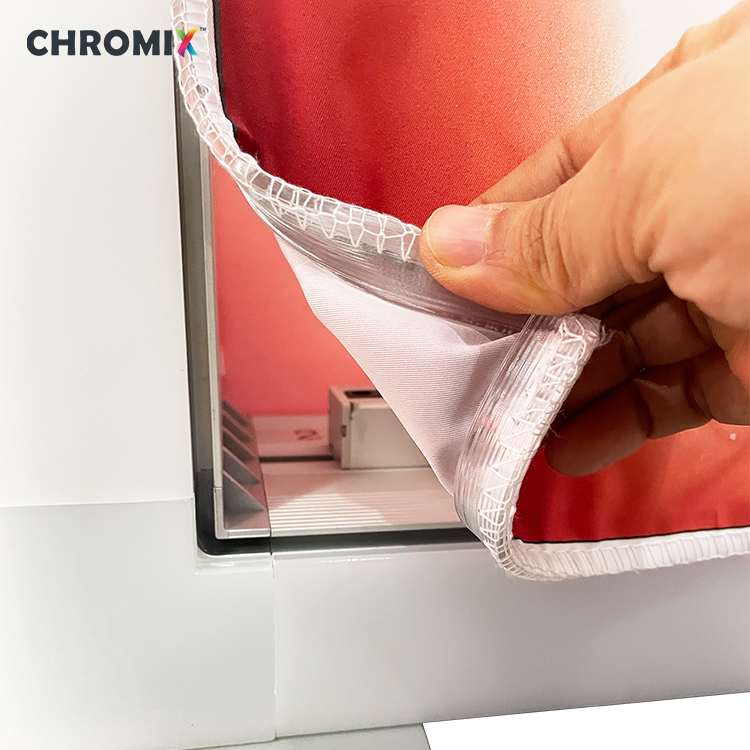

For printed branding, the optional 2915 × 1915mm SEG fabric graphic supports panoramic artwork, horizontal brand messaging and multi-product promotional layouts.
Expand Your Modular Display Configuration
Build corners and multi-directional structures.
Present product samples and promotional merchandise.
Integrate digital screens into display structures.
Display brochures and marketing materials.
CHROMIX™ accessories are compatible with the SEGPRO® Modular Light Box System, allowing both systems to share accessories for integrated exhibition and commercial display configurations.
The 3000 × 2000mm frame provides a 3-meter-wide branding area for exhibition backwalls, promotional displays and event presentations where a lower display height is preferred.
Optional SEG graphics support wide campaign visuals, horizontal brand messages and multi-product layouts in retail environments.
Combine the frame with compatible CHROMIX™ modules and connectors to build extended display walls or multi-section exhibition structures.
Integrate compatible shelves, literature holders or digital screens to support product demonstrations and branded showroom displays.
