LT-PLF120F1
120mm · ALU · Double-Sided · SEGPRO Compatible
Compact Modular RGB Display for Exhibitions & Retail

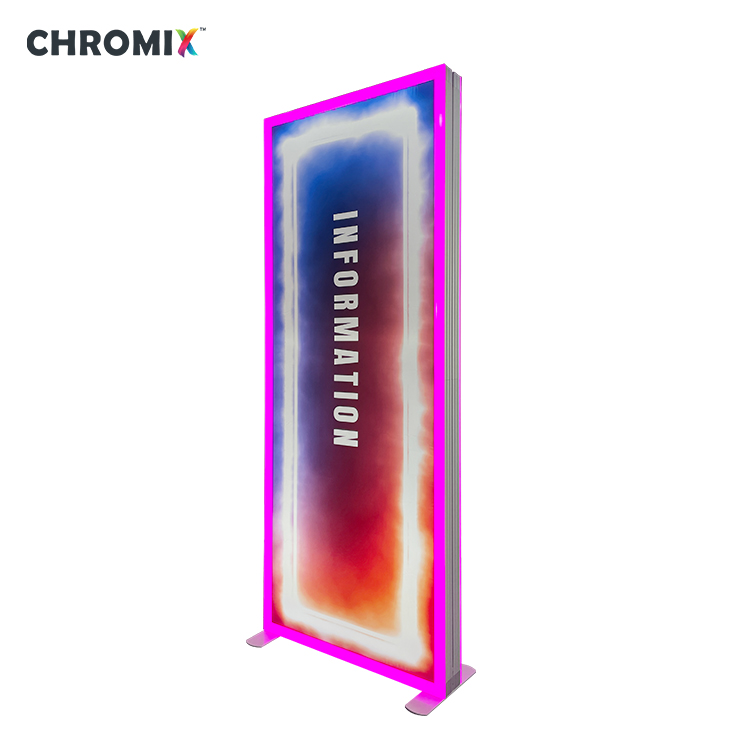

The CHROMIX™ 120 RGB LED Edge Frame (LT-PLF120F1) in the 1000 × 2000mm configuration is designed for standalone brand displays, retail promotions and modular exhibition installations. Featuring double-sided RGB edge lighting, tool-free conductive connections and a 120mm frame profile, it provides a reusable illuminated structure for commercial display projects.

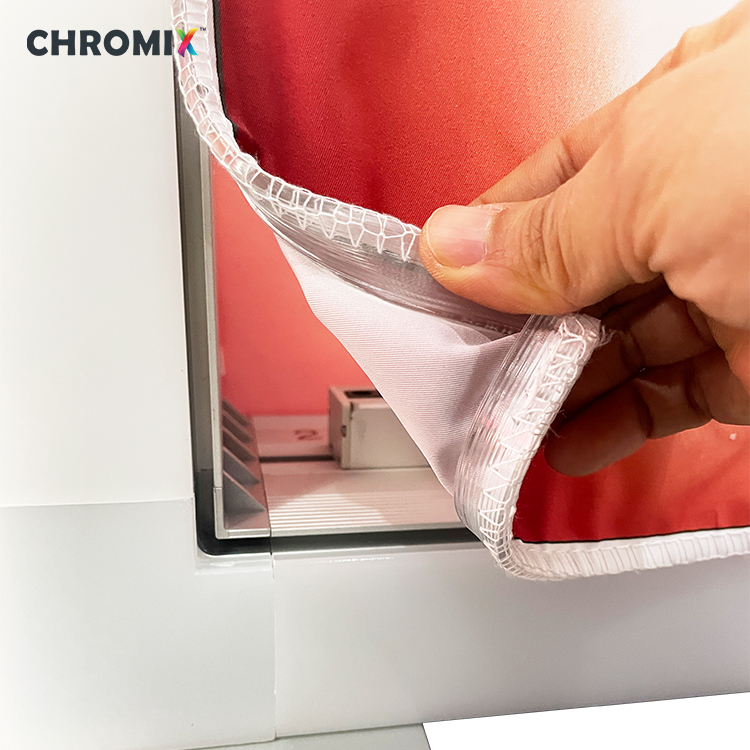

The standard configuration features RGB frame lighting without printed graphics. Optional SEG fabric graphics can be installed for branding, with additional LED strips available for graphic backlighting.
Available frame options include white flame-retardant PVC, black PVC and silver 6063-T5 aluminum.
Explore the CHROMIX™ RGB Frame System.
Standardized Components. Tool-Free Connections.
The CHROMIX™ 120 system uses modular frame sections, conductive connectors and removable components for efficient installation and repeated exhibition use.
Half feet and leveling feet for flexible display setups.

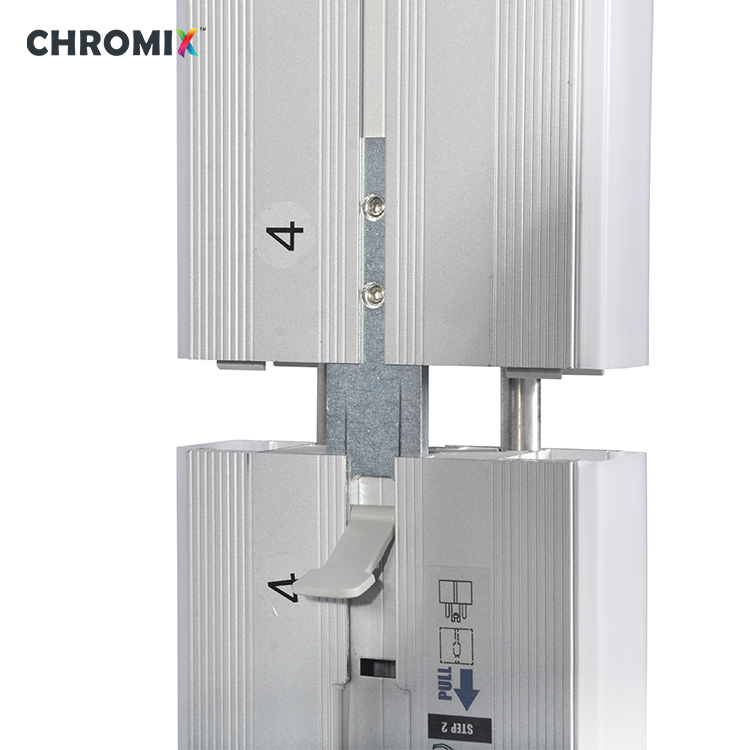

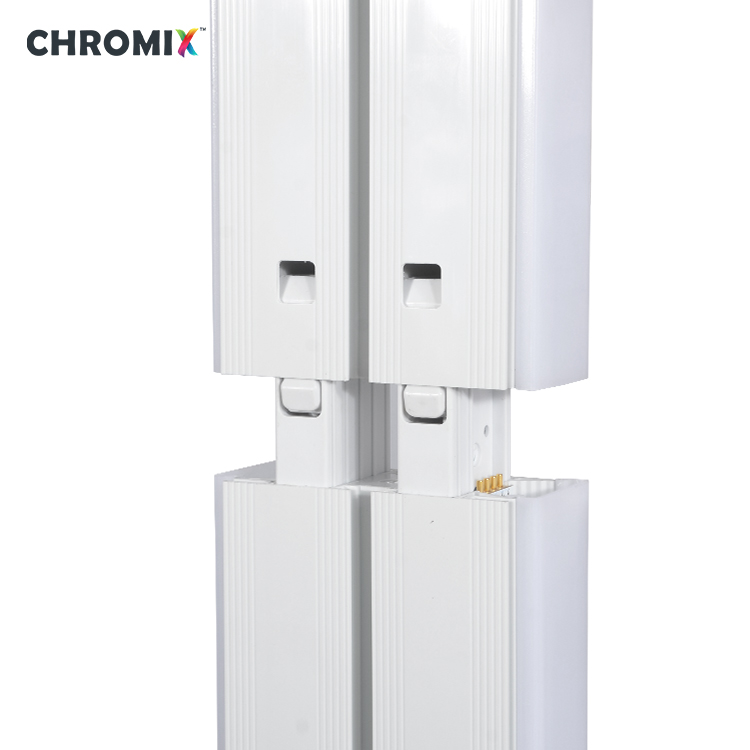

Tool-free frame joints with integrated electrical connections.

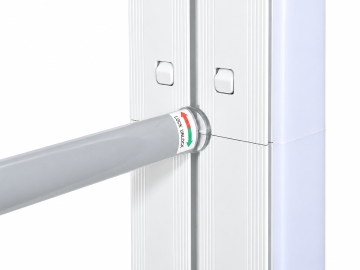

Included for added stability when SEG graphics are installed.

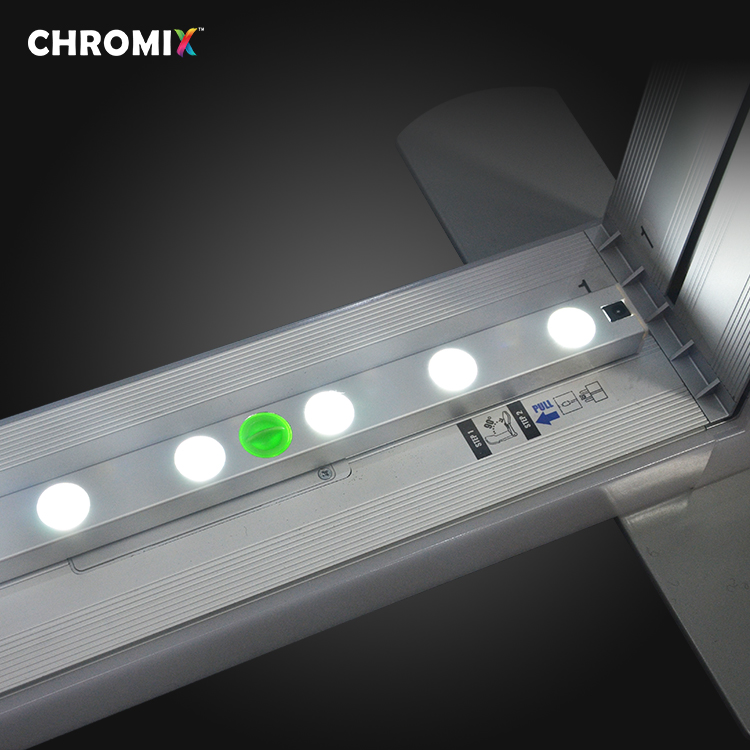

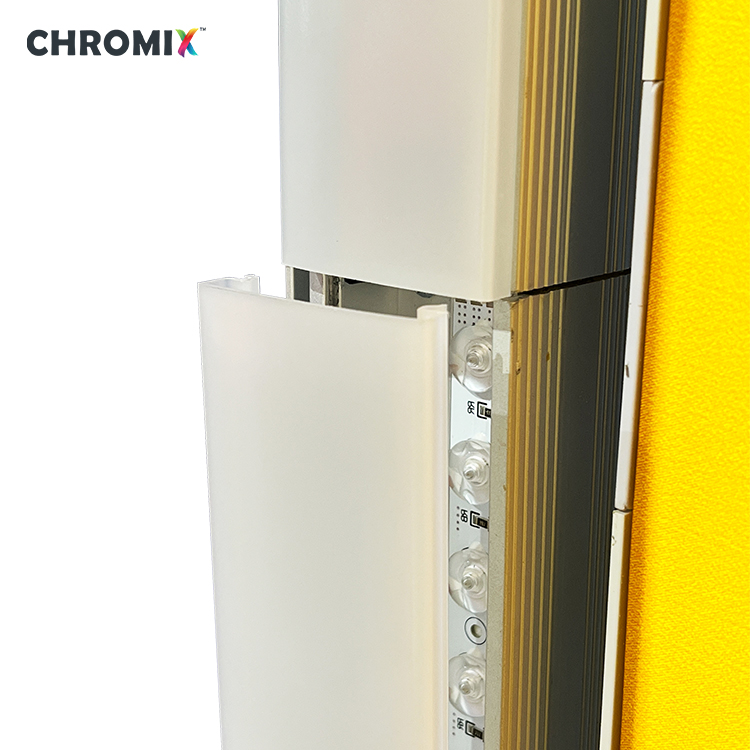

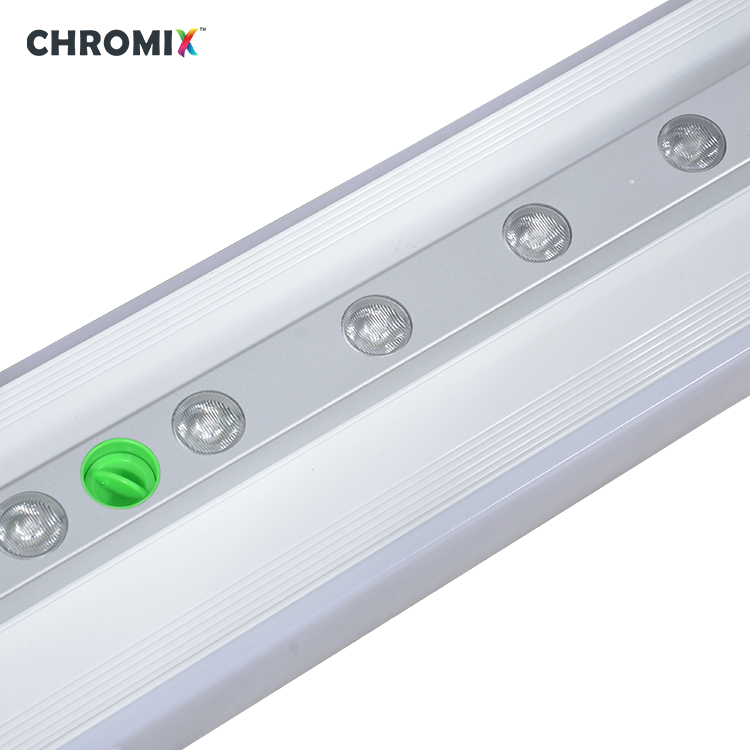

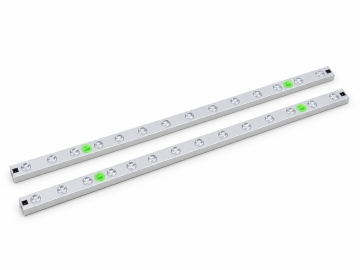

Detachable LED bars for convenient maintenance and replacement.
| Specification | Details |
|---|---|
| Model | LT-PLF120F1 |
| Frame Size | 1000 × 2000mm |
| Profile | 120mm |
| Frame Options | White Flame-Retardant PVC / Black PVC / Silver 6063-T5 Aluminum |
| RGB Lighting | Double-Sided RGB Edge Lighting |
| RGB Control | Remote Control / WiFi APP |
| Power Supply | 24V / 8.3A / 240W |
| Assembly | Tool-Free, Conductive Plug-In Connections |
| Support Poles | Included as Standard |
| Standard Configuration | RGB Edge Frame, Without SEG Graphics |
| Optional Configuration | SEG Graphics / LED Backlighting |
| SEG Graphic Size | 915 × 1915mm |
| Packing Size | 420 × 170 × 1300mm |
| Packing | EPE Foam + Trolley Bag |
Specifications and packing details should be confirmed according to the selected frame material and lighting configuration.
One System. Multiple Display Configurations.
The 1000 × 2000mm RGB frame is a standard configuration within the CHROMIX™ 120 modular system. Standardized components allow different frame widths and heights to be assembled for exhibition and commercial projects.
| Frame Width | Standard Heights |
|---|---|
| 1000mm | 2000 / 2250 / 2500mm |
| 2000mm | 2000 / 2250 / 2500mm |
| 3000mm | 2000 / 2250 / 2500mm |
| 4000mm | 2000 / 2250 / 2500mm |
| 5000mm | 2000 / 2250 / 2500mm |
| 6000mm | 2000 / 2250 / 2500mm |
Additional 2400mm-height configurations are available.
3′ × 8′ · 4′ × 8′ · 6′ × 8′ · 8′ × 8′ · 10′ × 8′ · 15′ × 8′ · 20′ × 8′
For the 1000 × 2000mm frame, the specified optional SEG graphic size is 915 × 1915mm.
Quick Installation. Repeatable Setup.
Arrange the frame sections and corner components.
Insert the quick-lock connectors.
Assemble the modular frame structure.
Install the RGB LED bars and engage the conductive connections.
Attach the support poles and suitable feet.
Connect the RGB controller and power supply.

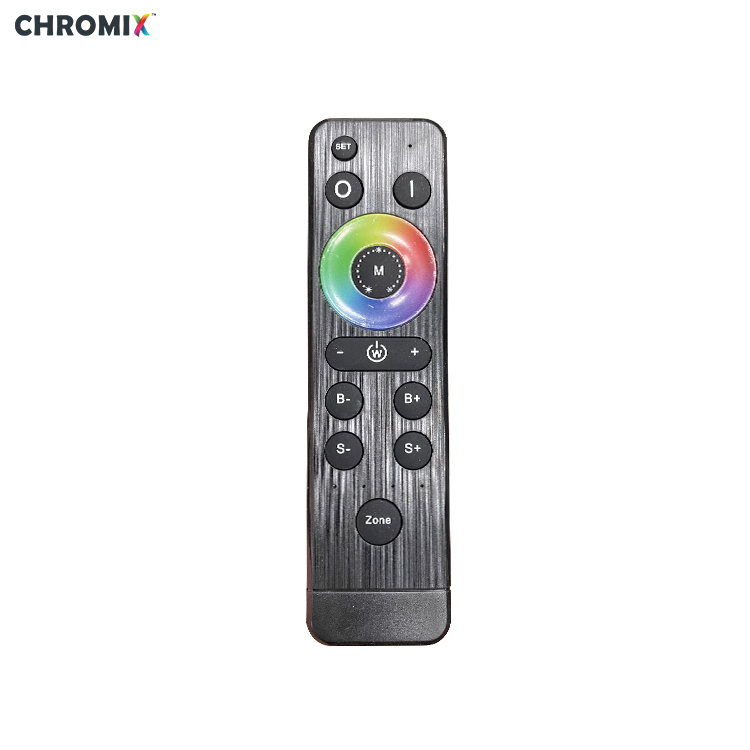

The CHROMIX™ 120 features double-sided RGB edge lighting with up to 16 million colors. Lighting colors and effects can be adjusted via remote control or WiFi APP to match different branding and display requirements.
16 Million Colors · Remote Control · WiFi APP
Three Display Configurations. One Modular Frame System.
Expand Your Modular Display Configuration
Build corners and multi-directional structures.
Present product samples and promotional merchandise.
Integrate digital screens into display structures.
Display brochures and marketing materials.
CHROMIX™ accessories are compatible with the SEGPRO® Modular Light Box System, allowing both systems to share accessories for integrated exhibition and commercial display configurations.
The 1000mm-wide format creates a compact illuminated display for product promotions, branded signage and exhibition presentations.
Use RGB frame lighting with optional SEG graphics for seasonal campaigns, point-of-sale promotions and retail branding.
Combine the frame with compatible CHROMIX™ components to build larger display walls or booth configurations.
Create reusable illuminated structures with optional shelves, literature holders or digital screen accessories.
