LT-ALF120Z
120mm · Large Size · Stackable · Double-Sided
The XQUIC™ CHRO 120mm Large Collapsible SEG Lightbox Display is a professional folding lightbox display engineered for large‑format exhibitions. As part of the XQUIC™ CHRO family, this collapsible seg lightbox display features a segmented modular folding frame that supports widths from 2m up to 6m – far exceeding the 85mm unibody series. Whether you need a folding led lightbox for a trade show backdrop, a lightbox banner for retail, or a double sided lightbox for aisle displays, the LT-ALF120Z delivers professional lighting, tool‑free assembly, and space‑saving logistics.
✔ 85mm folding light box – Unibody collapsible frame with fixed dimensions (e.g., 1000x2000mm). Lightweight, ideal for single‑unit portability.
✔ 120mm folding light box – Segmented modular frame that can be extended to widths from 2m up to 6m (2000/3000/4000/5000/6000mm wide). The frame is composed of multiple collapsible sections, allowing you to build large backdrops or exhibition booths. The 120mm system supports vertical stacking up to 4 meters high – simply remove corner caps and connect additional frames. This modularity makes it the perfect solution for oversized booth constructions.
Additionally, the XQUIC™ CHRO 120mm series includes not only backdrop light boxes but also matching folding promotional counters, creating a complete display ecosystem for large‑scale events.
Patented modular folding design – assemble without any tools. Pre‑installed LED strips with polarity‑free connection.

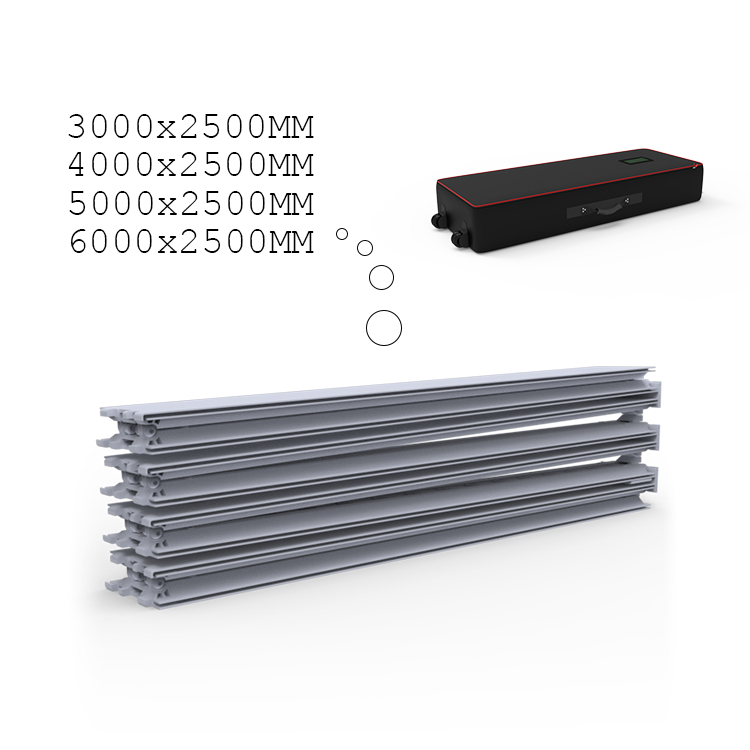

Collapses into a compact Oxford trolley bag. Reduces shipping volume by 70% compared to rigid light boxes.
Folds flat for storage. Perfect for rental companies and event agencies with limited warehouse space.
Edge‑lit LED strips with 6500‑7000K, 40500LM (for 6x2m), 50,000h lifespan. Uniform brightness, no dark spots.
Widths: 2m, 3m, 4m, 5m, 6m | Heights: 2000/2250/2500mm. Custom printing on SEG fabric.
Wheeled carry bag included. All components (frame, poles, feet, graphic) fit into one case – one‑person move.

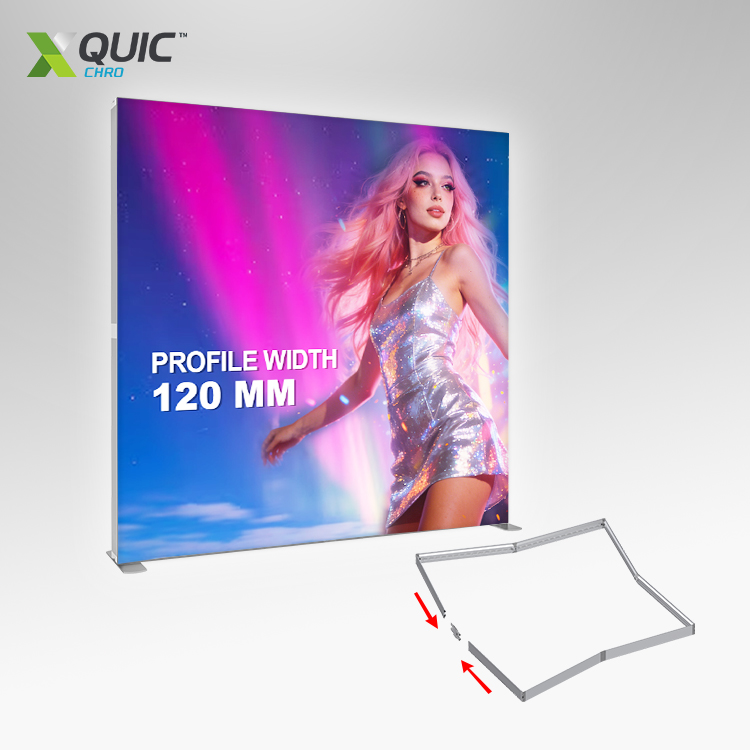

2000 × 2000 / 2250 / 2500mm

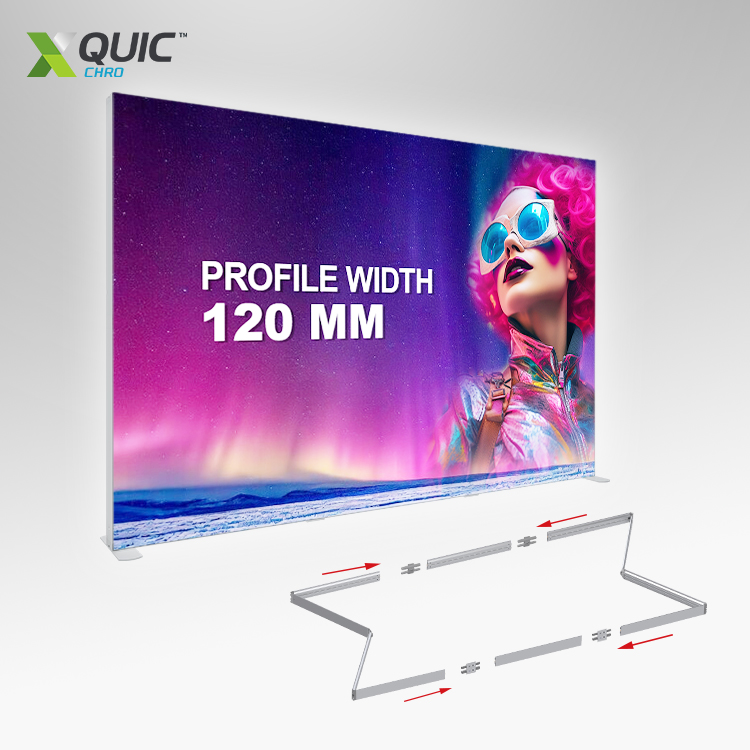

3000 × 2000 / 2250 / 2500mm

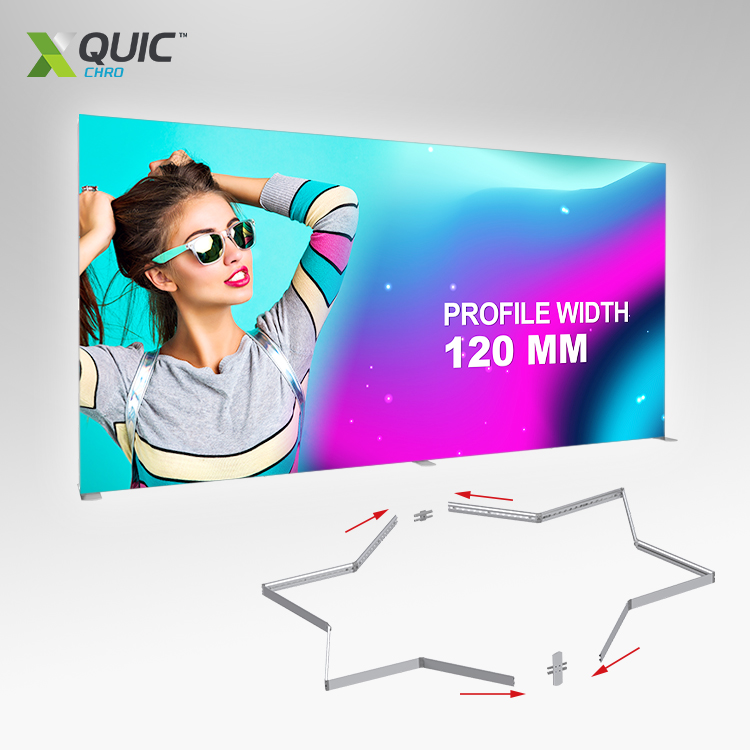

4000 × 2000 / 2250 / 2500mm

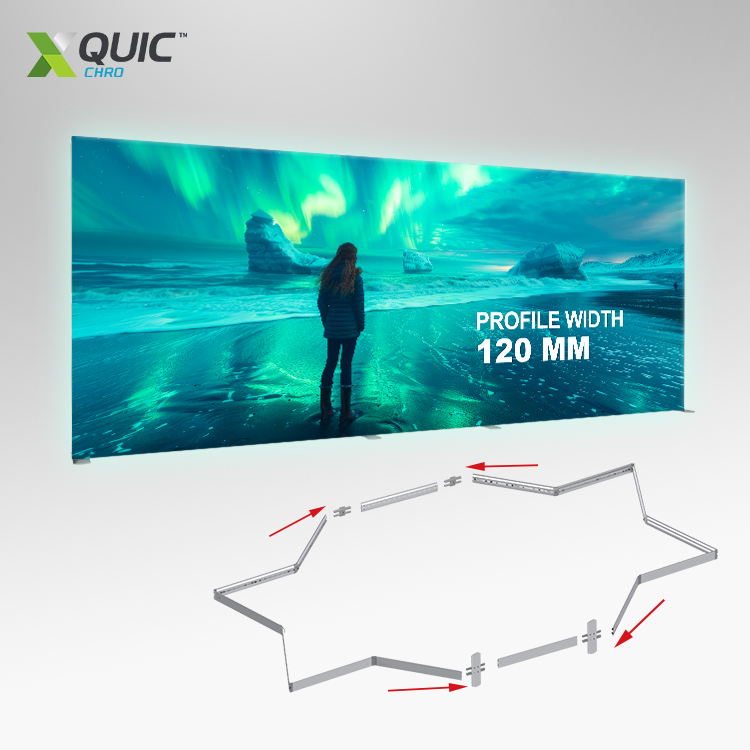

5000 × 2000 / 2250 / 2500mm

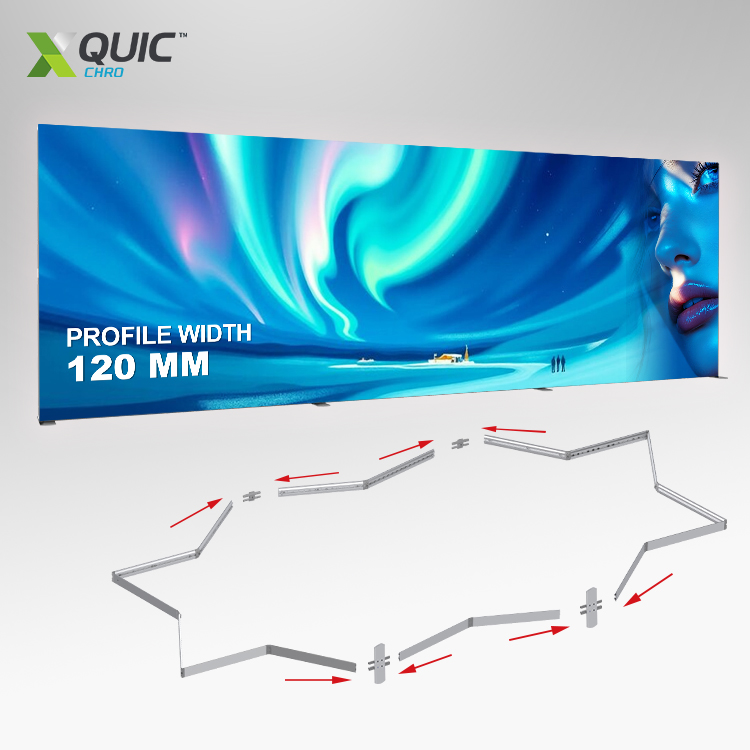

6000 × 2000 / 2250 / 2500mm
1000 × 1000mm (Counter)
| Frame Thickness | 120mm aluminum profile |
|---|---|
| Available Widths | 2000 / 3000 / 4000 / 5000 / 6000 mm |
| Available Heights | 2000 / 2250 / 2500 mm (single frame), stackable up to 4000 mm |
| Frame Structure | Segmented modular collapsible (not unibody) – each section folds independently |
| Lighting | Edge‑lit LED strips, 6500‑7000K, 40500LM (6x2m config), 50,000h life |
| Graphic Type | SEG silicone‑edge fabric, UV/heat transfer printing, double‑sided available |
| Power Input | AC 100‑240V, 50/60Hz, Output 24V/15A (360W for 6x2m) |
| Materials Safety | V0 flame‑retardant plastics, B1 fire‑rated fabric, CE/ROHS |
| Included Components | Folding frame, support poles, feet, SEG fabric graphic, Oxford trolley bag |
Setting up this collapsible seg lightbox display is a 5‑step process:
Step 1: Remove folded frame, support rods, and feet from the trolley bag.
Step 2: Unfold the frame sections and connect them using the modular connectors.
Step 3: Install horizontal and vertical support rods.
Step 4: Attach the feet to the bottom sides.
Step 5: Stretch the SEG fabric over the frame and connect power. Done.

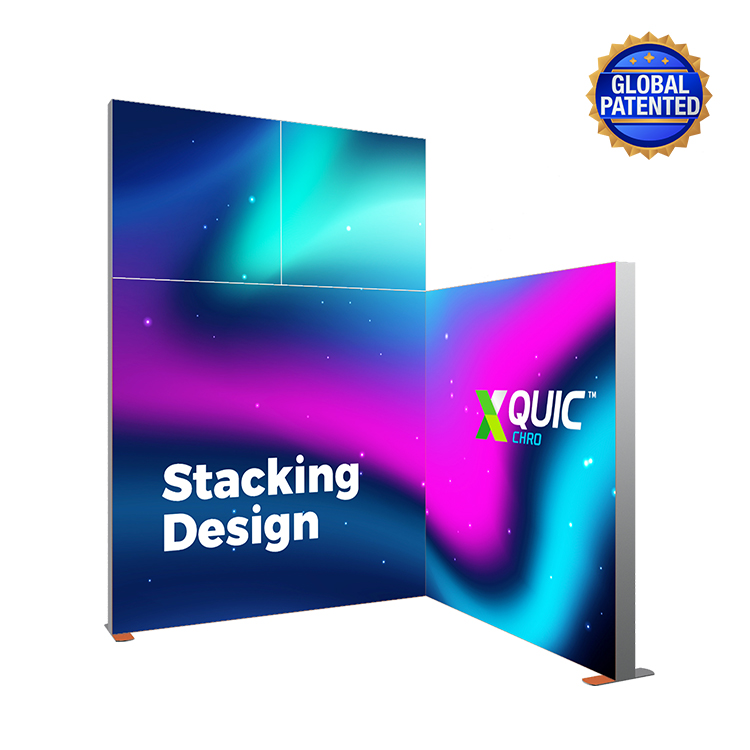

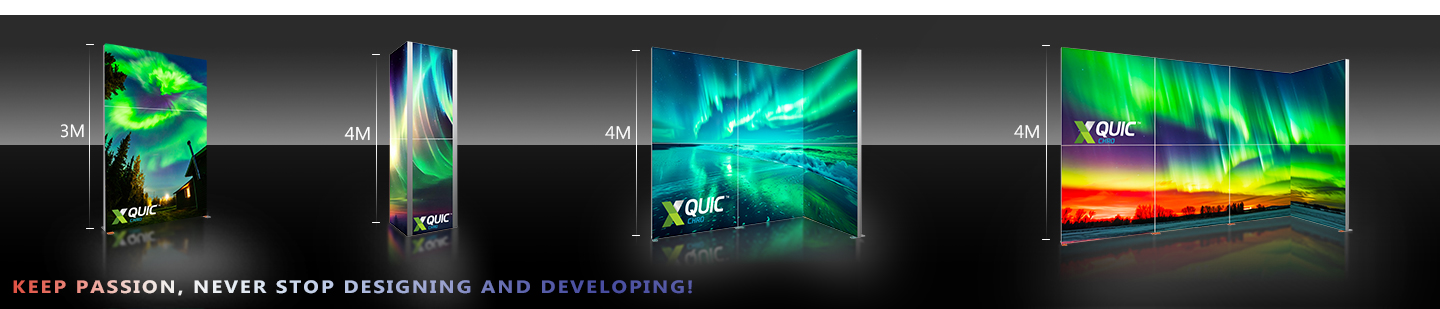

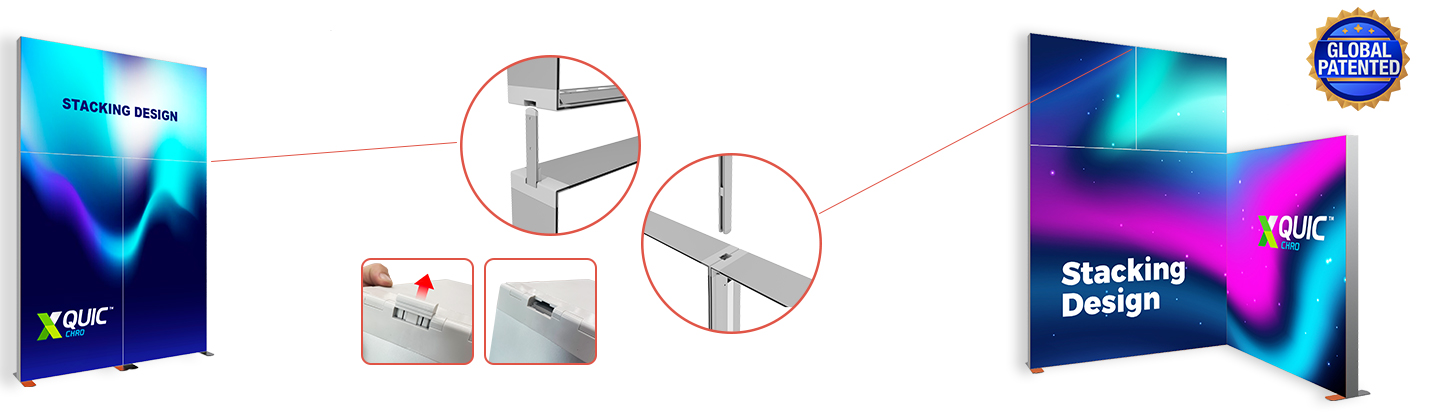

The XQUIC™ CHRO 120mm system features a unique stacking mechanism: remove the corner caps, insert stacking connectors, and place another fully collapsible lightbox on top. Combined height can reach up to 4 meters. This allows you to create towering exhibition booths or double‑height backdrops without extra structural engineering.

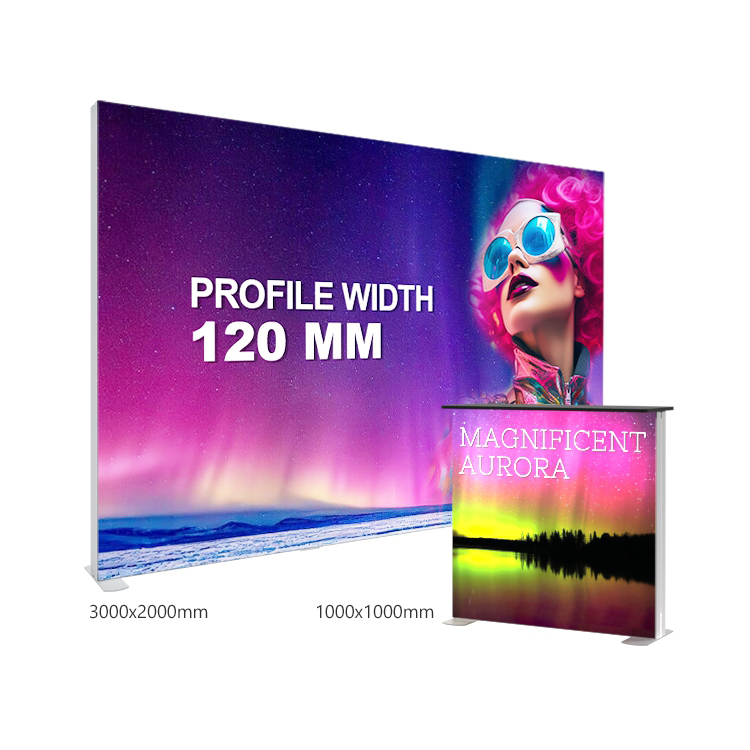

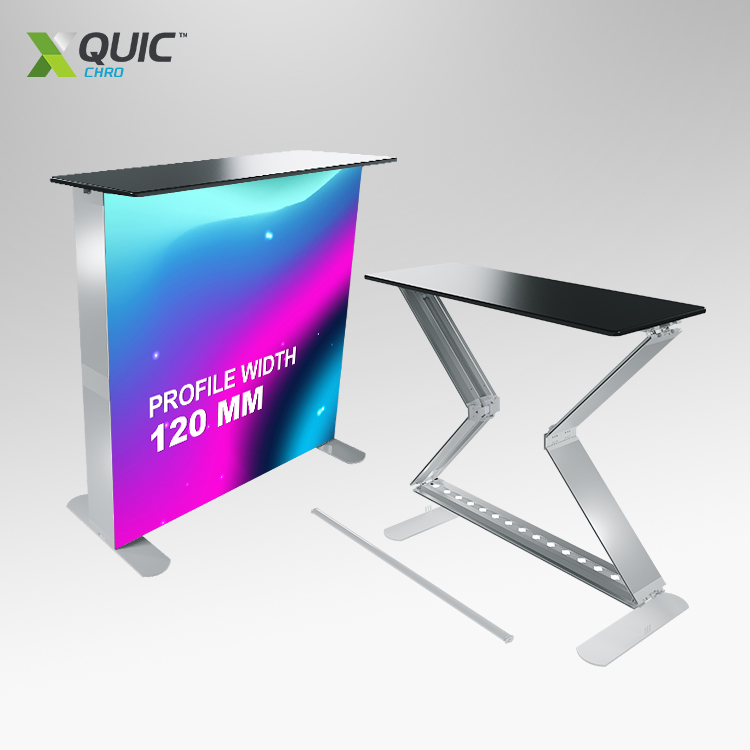

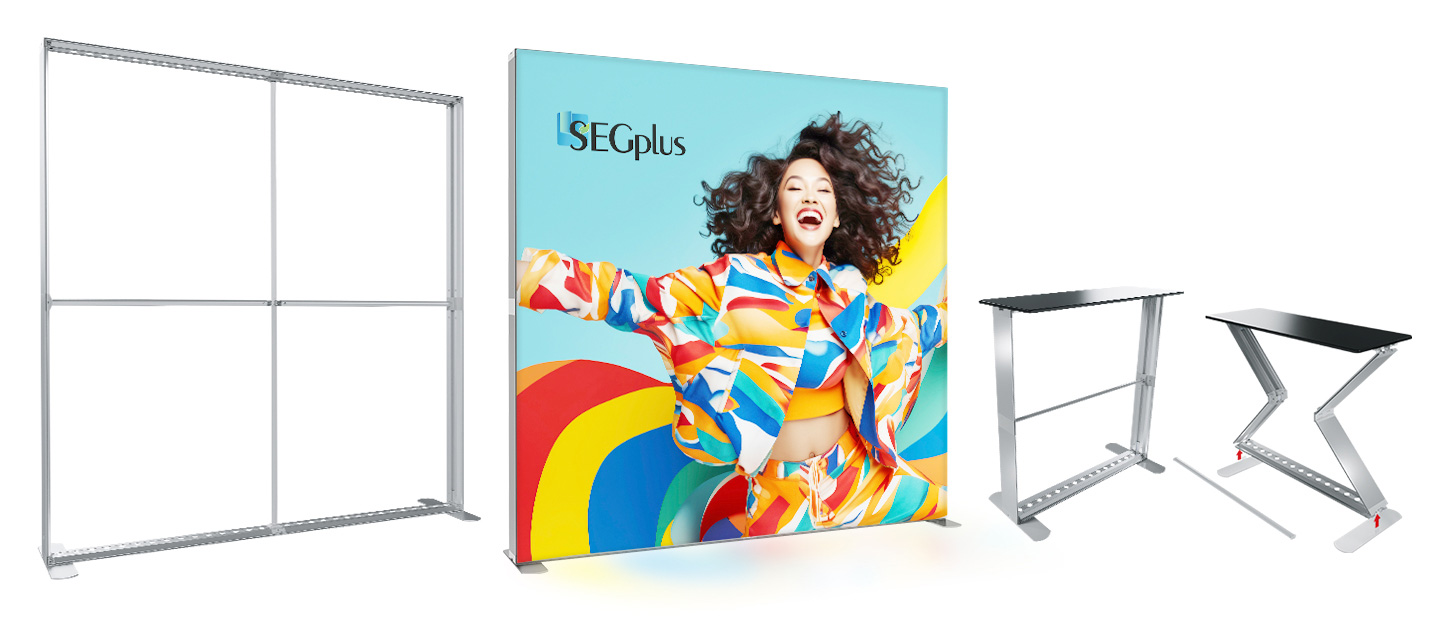

Beyond the large lightbox banner walls, the XQUIC™ CHRO 120mm series includes a matching folding promotional counter (same 120mm thickness). The counter can be equipped with a rechargeable battery and a wireless phone charging pad – ideal for event registration desks or product sampling stations. Both backdrop and counter share the same modular design language, creating a cohesive brand presence.
For double sided lightbox applications, we offer dual‑side SEG fabric graphics (different prints on each side), perfect for island booths or hanging displays.
Yes. Replacement SEG graphics are available – simply email your design to our sales team. The frame remains reusable.
Yes. The fabric meets B1 fire rating (DIN 4102 / DIN EN 3501) and plastic components are V0 flame‑retardant.
The 85mm is a unibody folding frame (fixed size). The XQUIC™ CHRO 120mm is modular – each section folds independently, so you can pack a 6‑meter wide backdrop into a standard trolley bag.
Absolutely. Order double‑sided SEG fabric, and the frame supports front/back graphics without modification.
You can stack two units to reach 4 meters total height (e.g., 2m + 2m). For higher, please consult our engineering team.
