RGB Edge Frames vs SEG Light Boxes: Which Should You Choose?

RGB edge frames and SEG light boxes are both illuminated display systems used in exhibitions, retail environments, and branded commercial spaces. However, they serve different visual purposes.

An RGB edge frame uses controllable colored lighting around the frame to create decorative lighting effects. A conventional SEG light box illuminates the printed fabric graphic, making the artwork the primary visual feature.

For exhibition contractors, print service providers, and display distributors, the choice depends on whether a project needs illuminated graphics, dynamic frame lighting, or a combination of both.

With compatible modular systems, these functions do not have to be mutually exclusive.

RGB Edge Frames vs SEG Light Boxes: Quick Comparison

Quick recommendation: Choose a conventional SEG light box when the priority is displaying printed graphics with consistent illumination. Choose an RGB edge frame when the frame itself needs to contribute to the visual design through adjustable color effects.

For projects requiring both, consider a compatible RGB + SEG configuration.

What Is an RGB Edge Frame?

An RGB edge frame is an illuminated display structure with RGB lighting positioned around the frame perimeter.

Unlike a conventional light box, where the lighting primarily illuminates the printed graphic, an RGB edge frame uses colored light to highlight the frame outline.

RGB lighting can be adjusted to suit different brand colors, event themes, or display environments.

Lintel Display's CHROMIX™ RGB Frame System is designed for modular exhibition and retail applications.

How CHROMIX™ RGB Lighting Works

CHROMIX™ uses RGB LED lighting integrated with modular frame profiles.

Depending on the model, users can select static colors or dynamic lighting modes through an RGB controller.

This allows the same display structure to support different visual presentations without changing the frame.

For example, an exhibition contractor may use one lighting color for a product launch and another for a subsequent campaign.

The printed graphic can remain unchanged while the RGB edge lighting is adjusted to match the event.

CHROMIX™ 80mm and 120mm Systems

CHROMIX™ includes different profile systems for different applications.

CHROMIX™ 80mm is designed for freestanding displays, retail installations, and creative frame configurations. Selected models support straight and curved shapes, stacking, wall mounting, and other installation methods.

CHROMIX™ 120mm is particularly relevant to modular exhibition structures. Selected models provide double-sided RGB edge lighting and compatibility with SEGPRO® 120mm booth components.

The two profile systems should be evaluated separately because their connectors, accessories, and compatible configurations differ.

What Is a Conventional SEG Light Box?

A silicone-edge graphic (SEG) light box uses an illuminated frame and a printed fabric graphic fitted into the frame groove with silicone keder.

LED lighting illuminates the fabric from within the frame, creating a backlit graphic display.

The main purpose is to make the printed image, product photography, or brand message clearly visible.

Lintel Display's SEGPRO® Modular Light Box System uses reusable 120mm frame profiles with aluminum, PVC and ABS material options.

Its modular construction supports different light box sizes and exhibition configurations.

Why Graphic Illumination Matters

For many display applications, the printed artwork is the most important visual element.

A conventional SEG light box is suitable when customers need:

• Clearly illuminated logos and brand messages.

• Backlit product photography.

• Large-format exhibition graphics.

• Reusable illuminated backdrops.

• Consistent visual presentation across different campaigns.

The quality of the finished display depends on the LED arrangement, fabric printing, graphic tension, and overall lighting design.

RGB edge lighting alone should not be treated as a replacement for proper graphic illumination.

Lighting Effects vs Graphic Visibility

The main difference between the two systems is where the lighting is intended to create visual impact.

RGB Edge Lighting: Emphasizing the Frame

RGB lighting highlights the outer structure of a display.

It can introduce color changes, visual contrast, and decorative lighting effects around the printed graphic.

This is particularly useful when the frame forms part of the overall booth design rather than serving only as a support for printed artwork.

Typical applications include branded entrance frames, retail feature displays, themed exhibition spaces, and promotional installations.

SEG Backlighting: Emphasizing the Graphic

SEG backlighting illuminates the printed fabric surface.

It is generally the more direct solution when the objective is to display detailed product images, text, and brand graphics.

For example, a large exhibition backdrop featuring product photography may benefit more from well-designed SEG backlighting than from decorative RGB lighting alone.

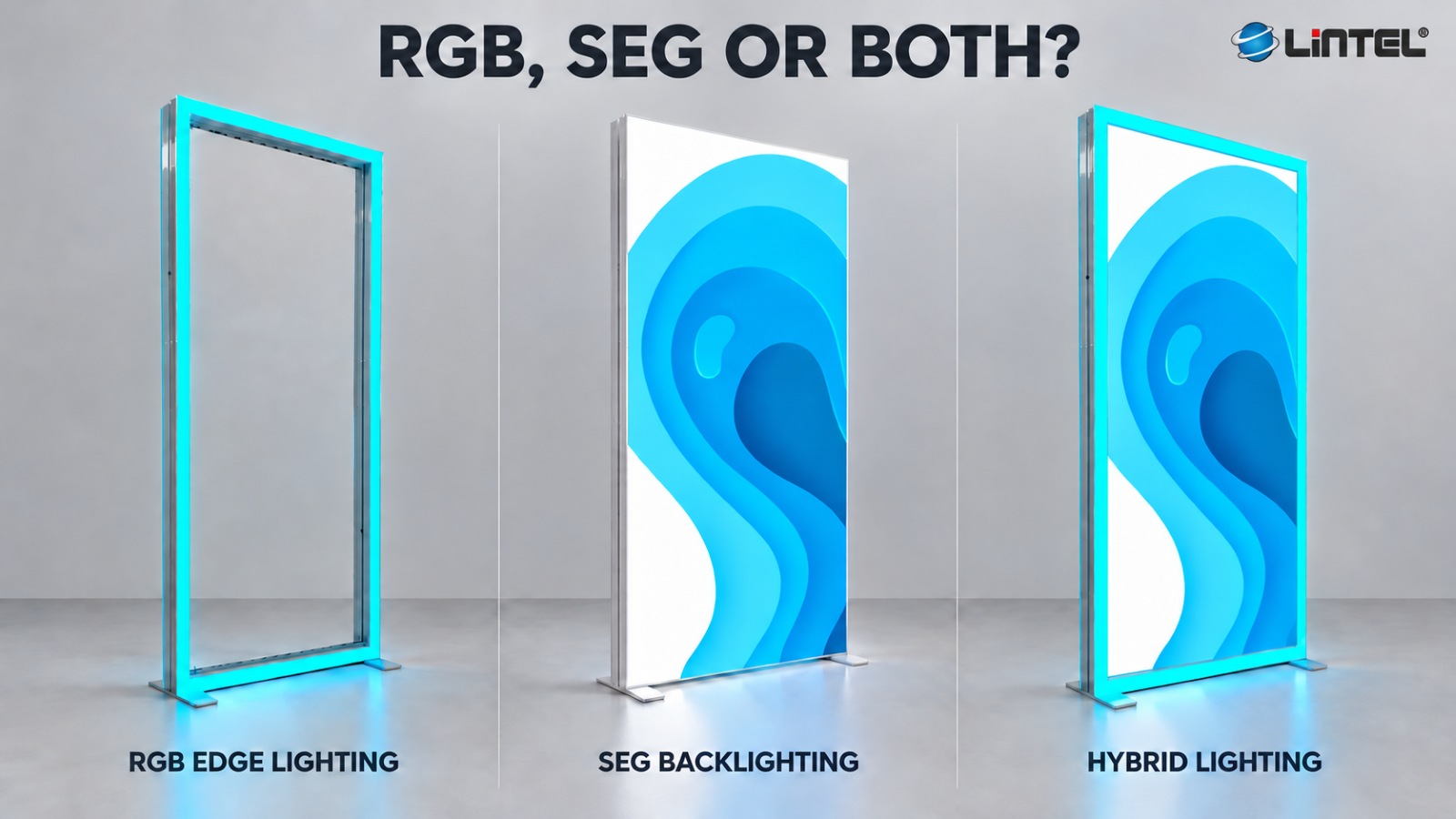

Combined Lighting: Using Both Functions

A combined system can use RGB lighting to define the display structure while illuminating the SEG graphic separately.

This allows the printed artwork to remain the main communication surface, with RGB lighting adding another visual layer.

The result depends on the frame configuration, LED modules, graphic material, and lighting controls.

Can an RGB Edge Frame Become an SEG Light Box?

Yes. Selected CHROMIX™ configurations can be equipped with additional LED lighting modules to illuminate SEG fabric graphics.

Lintel Display offers modular LED strip kits for CHROMIX™ frames.

These removable modules allow compatible RGB frames to be configured for different lighting requirements.

Three Display Configurations

Important: The available display modes depend on the specific CHROMIX™ model, LED module, power configuration, and graphic requirements. Confirm the intended setup before specifying components.

Can CHROMIX™ and SEGPRO® Be Combined?

Yes. Lintel Display offers compatible configurations that allow CHROMIX™ RGB edge frames to work with SEGPRO® modular light box structures.

This is particularly relevant to exhibition projects where different display areas require different lighting functions.

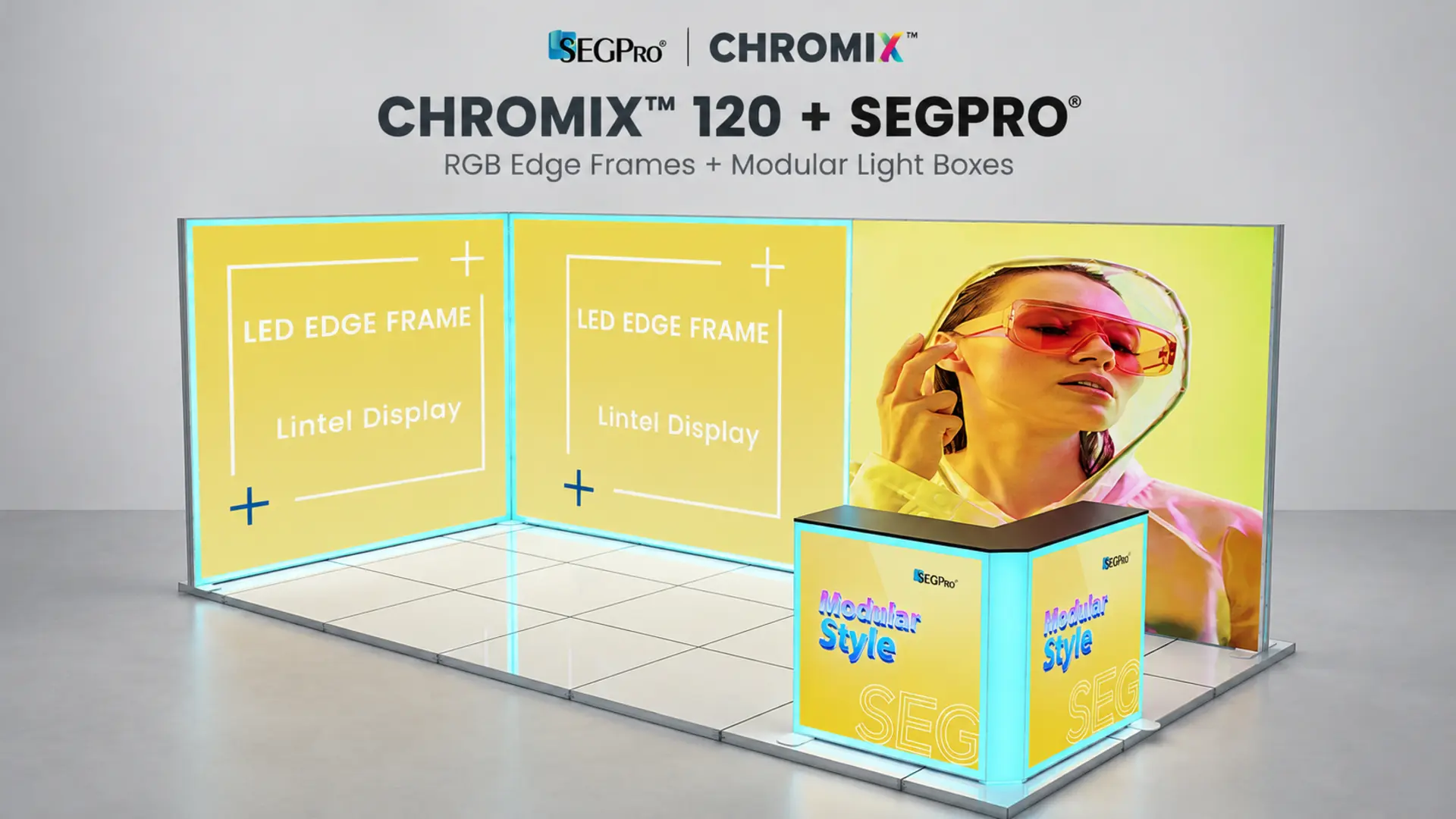

CHROMIX™ 120mm + SEGPRO® 120mm

Compatible CHROMIX™ 120mm RGB frames can be incorporated into SEGPRO® modular exhibition configurations.

For example, a booth may use SEGPRO® illuminated walls for product graphics while incorporating CHROMIX™ RGB frames as decorative features or branded structural elements.

This approach is suitable for projects requiring:

• Illuminated exhibition backdrops.

• RGB feature frames.

• Modular display walls and connected structures.

• Promotional counters and selected functional accessories.

• Reconfigurable exhibition layouts.

The CHROMIX™ 120mm RGB Edge Frame range provides options for these applications.

CHROMIX™ 80mm + LT-80S

Lintel also offers an 80mm modular combination.

The LT-80S Modular SEG Light Box can connect with compatible CHROMIX™ 80mm RGB frames using dedicated connectors.

The LT-80S provides an illuminated SEG graphic surface, while CHROMIX™ introduces adjustable RGB lighting effects.

This combination is suitable for retail partitions, promotional display walls, and product presentation areas.

The 80mm and 120mm systems use different profile and connection arrangements. Compatibility must be confirmed for each project rather than assumed across all models.

Which System Fits Your Display Project?

The most useful way to choose between RGB edge frames and SEG light boxes is to start with the required display function.

Frequently Asked Questions

What is the main difference between an RGB edge frame and an SEG light box?

An RGB edge frame primarily uses colored lighting around the frame perimeter, while a conventional SEG light box illuminates the printed fabric graphic.

The two functions can be combined in compatible systems.

Can an RGB edge frame illuminate the printed SEG graphic?

Yes, when the frame is equipped with a compatible graphic illumination system.

Selected CHROMIX™ models support additional removable LED modules that allow the frame to function as an illuminated SEG light box.

RGB edge lighting alone does not necessarily provide uniform illumination across the graphic.

Can CHROMIX™ RGB frames be combined with SEGPRO® light boxes?

Yes. Compatible CHROMIX™ 120mm frames can be combined with SEGPRO® 120mm modular display configurations.

The required connectors, lighting components, and structural arrangements depend on the specific project.

Is CHROMIX™ suitable for a complete exhibition booth?

Selected CHROMIX™ configurations can be incorporated into modular exhibition structures.

For projects requiring illuminated walls, storage areas, counters, or other functional booth components, the complete layout should be evaluated alongside compatible SEGPRO® components.

Can SEG graphics be replaced on both systems?

Yes. Compatible CHROMIX™ and SEGPRO® frames support replaceable SEG fabric graphics.

Replacement artwork must match the relevant frame dimensions and graphic production requirements.

Choose the Right Lighting Configuration for Your Project

RGB edge frames and SEG light boxes are designed to solve different display requirements.

Choose SEGPRO® when illuminated graphics are the priority. Choose CHROMIX™ when adjustable RGB edge lighting is central to the display design. Combine compatible systems when the project needs both functions.

For professional buyers, the final specification should also consider frame dimensions, lighting configuration, connectors, graphic materials, maintenance, and future reuse.
