80mm Modular Single-Sided SEG Light Box

Model:

LT-80S

80MM · PVC · Modular · Tool-Free

Inquire Now

Category:Modular Light Box Displays

Product Detail

LT-80S 80mm Modular Single-Sided SEG Light Box | Lintel Display

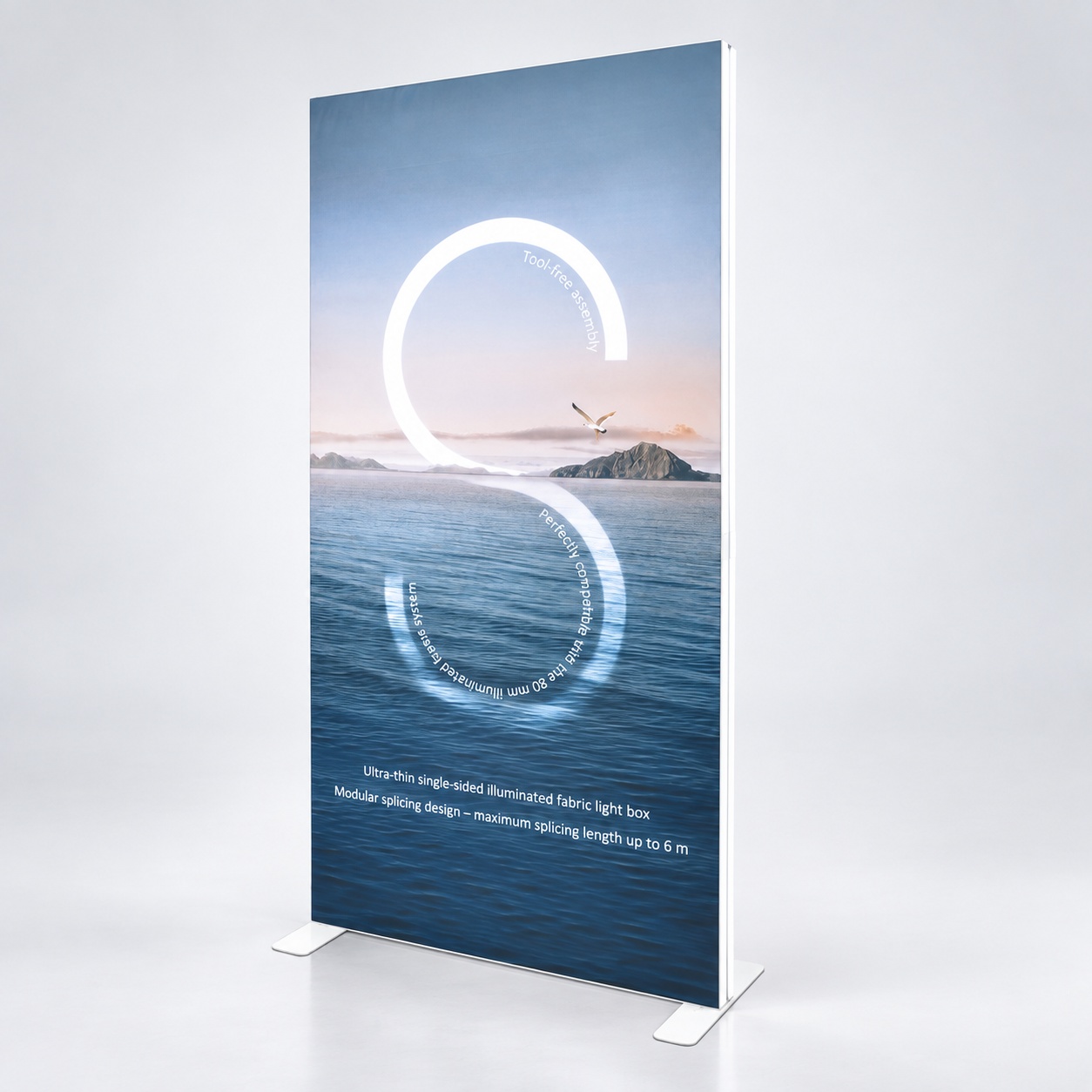

80mm Modular Single-Sided SEG Light Box

LT-80S is an 80mm modular single-sided SEG light box designed for exhibition, retail and commercial display projects. Its PVC profile supports tool-free modular expansion up to 6m, while the standard LED light curtain can be upgraded with removable LED bars when additional brightness is required.

Key Features

80mm PVC Profile

Slim profile for single-sided backlit displays.

Modular to 6m

Expandable modular structure for larger displays.

Tool-Free Assembly

Connect, extend and dismantle without tools.

LED Light Curtain

Standard backlighting behind the front SEG graphic.

Removable LED Bars

Optional lighting upgrade for added brightness.

Dual Rear SEG Grooves

Black backing or optional additional rear graphic.

Technical Specifications

Specification	LT-80S
Profile Depth	80mm
Frame Material	PVC
Display Type	Single-Sided Backlit
Front Graphic	Printed SEG Fabric
Standard Lighting	LED Light Curtain
Optional Lighting	Removable LED Bars
Rear Fabric	Black-Backed Fabric
Rear SEG Grooves	2
Maximum Expansion	Up to 6m
Assembly	Tool-Free
Installation	Freestanding

Modular sizing: Profiles can be configured for different display widths, with structures extending up to 6m according to project requirements.

Modular PVC Frame — Expandable Up to 6m

LT-80S uses a modular 80mm PVC frame rather than a fixed-size structure. Profile sections can be connected and extended according to the required display width, supporting configurations up to 6m.

For professional buyers:

Purchase profiles and components for local assembly
Configure different display widths
Extend the structure for larger projects
Reuse components across display requirements

Single-Sided Backlighting with Flexible Rear Configuration

The standard configuration combines a front SEG graphic, LED light curtain and rear black-backed fabric. Two SEG grooves on the rear provide additional flexibility, allowing another graphic layer to be added when required.

Flexible LED Configuration

STANDARD	OPTIONAL UPGRADE
LED Light Curtain	Removable LED Bars
Standard backlighting for the front SEG graphic.	Add extra lighting when higher brightness is required.
Included configuration	Customer-installable
—	Removable & replaceable

Removable LED bars can be purchased separately and installed according to project requirements, allowing buyers to increase brightness without replacing the complete light box.

Quick-Change SEG Graphics

Silicone-edged fabric inserts directly into the frame groove for a smooth, tensioned finish. Graphics can be replaced for new campaigns while the frame and lighting components remain in use.

Standard vs Optional Configuration

Configuration	Standard	Optional
80mm PVC Modular Frame	✓
Front SEG Graphic	✓
LED Light Curtain	✓
Rear Black-Backed Fabric	✓
Tool-Free Connection	✓
Removable LED Bars		✓
Additional Rear Graphic		✓
Extended Modular Size		✓

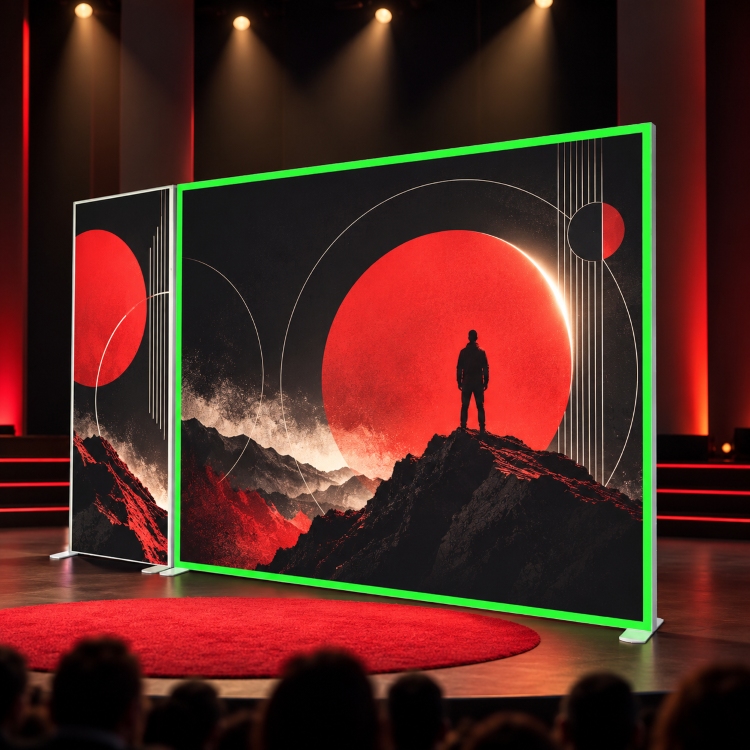

Applications

Exhibition Displays

Large-format illuminated backdrops for trade shows and branded spaces.

Retail Displays

Backlit promotional graphics for campaigns and visual merchandising.

Showrooms

Freestanding illuminated graphics for product and brand presentation.

Display & Print Projects

Modular components for distributors, printers and display solution providers.

Frequently Asked Questions

How large can the 80mm Modular Single-Sided SEG Light Box be configured?

The 80mm Modular Single-Sided SEG Light Box can be expanded through its modular PVC profile structure, with configurations reaching up to 6 meters. For large-format projects, the final structure should be confirmed according to dimensions and installation requirements.

Can buyers purchase the Modular SEG Light Box profiles for local assembly?

Yes. The Modular SEG Light Box is designed around reusable 80mm PVC profiles and modular components. Buyers can purchase the required frame components and configure sizes according to their project requirements.

Are the additional LED bars standard with the Single-Sided SEG Light Box?

No. The Single-Sided SEG Light Box uses an LED light curtain as the standard backlighting solution. Removable LED bars are optional and can be added when a project requires higher brightness.

Can the 80mm Single-Sided SEG Light Box display a graphic on the rear?

Yes. The rear of the 80mm Single-Sided SEG Light Box has two SEG grooves. The standard configuration uses black-backed fabric, while an additional graphic can be installed behind it when rear-facing visual content is required.

Does the Modular Single-Sided SEG Light Box require tools for installation?

No. The Modular Single-Sided SEG Light Box uses a tool-free connection structure designed for faster assembly and dismantling. This is particularly suitable for exhibition contractors, display distributors and projects requiring repeated installation.
